Graphics内存数据拆解
https://gerrit.pt.mioffice.cn/c/platform/external/skia/+/5763241
https://gerrit.pt.mioffice.cn/c/platform/frameworks/base/+/5763674
精简+开关：
https://gerrit.pt.mioffice.cn/q/BUGOS2-707079

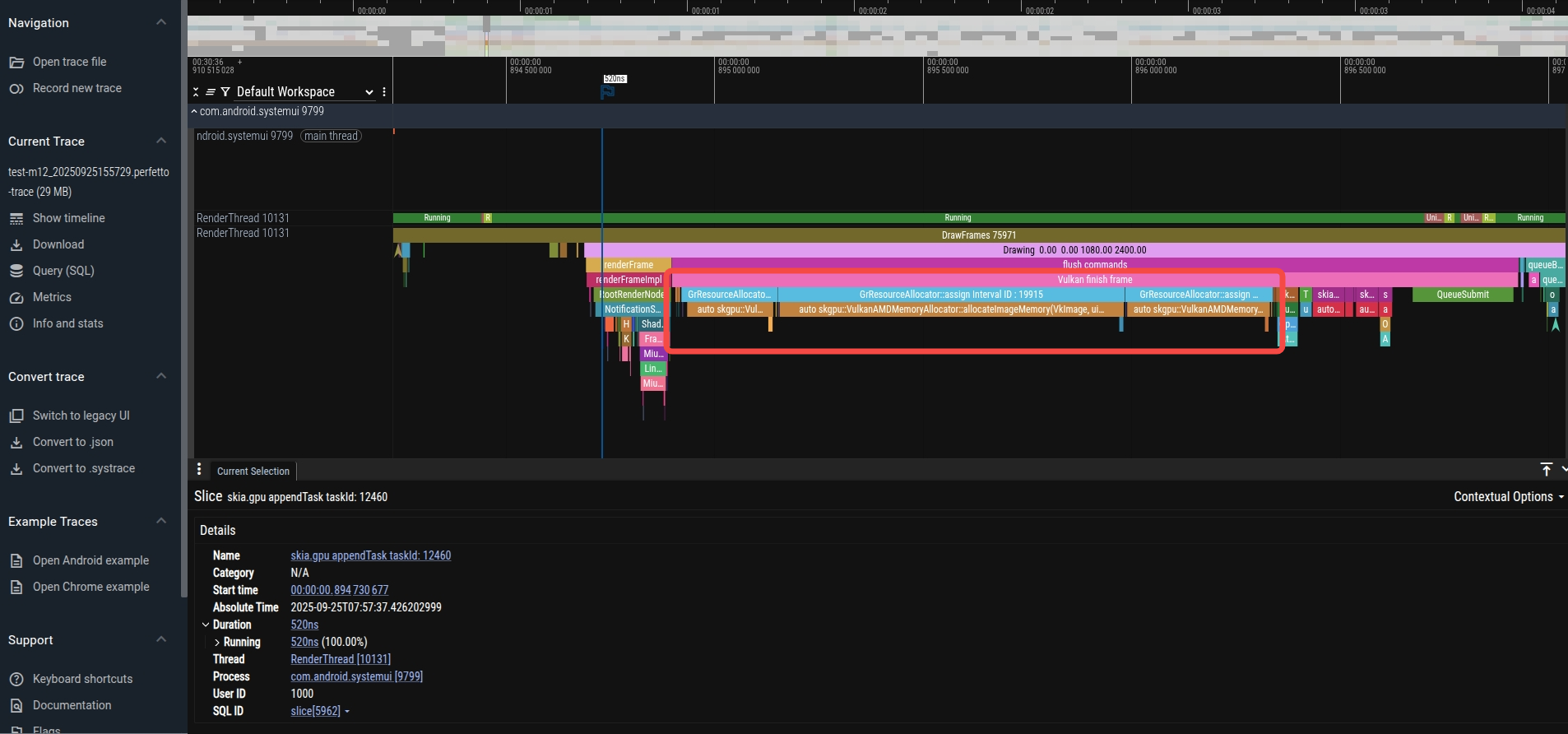

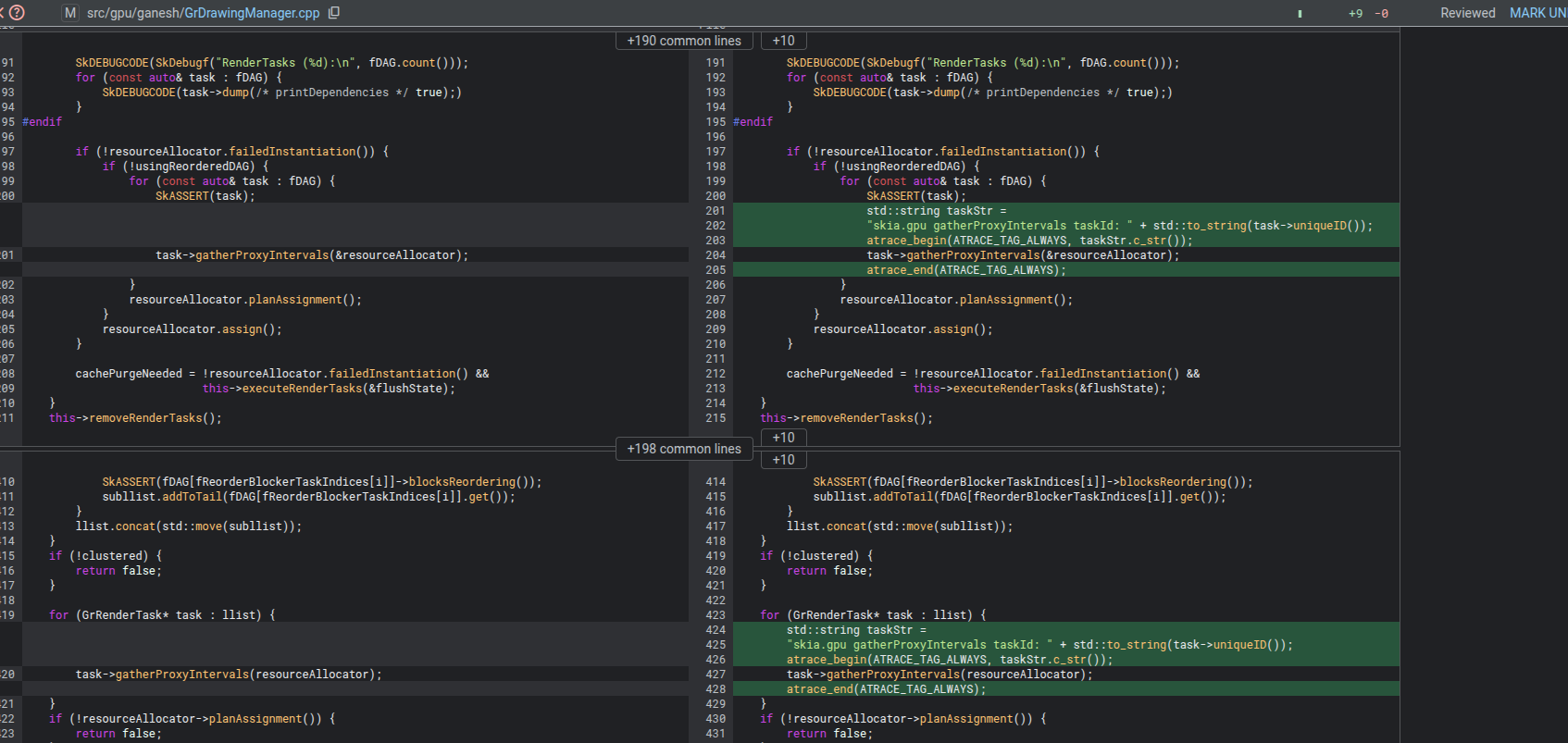

GL+trace日志增强 — 分析每一帧 vulkan内存申请

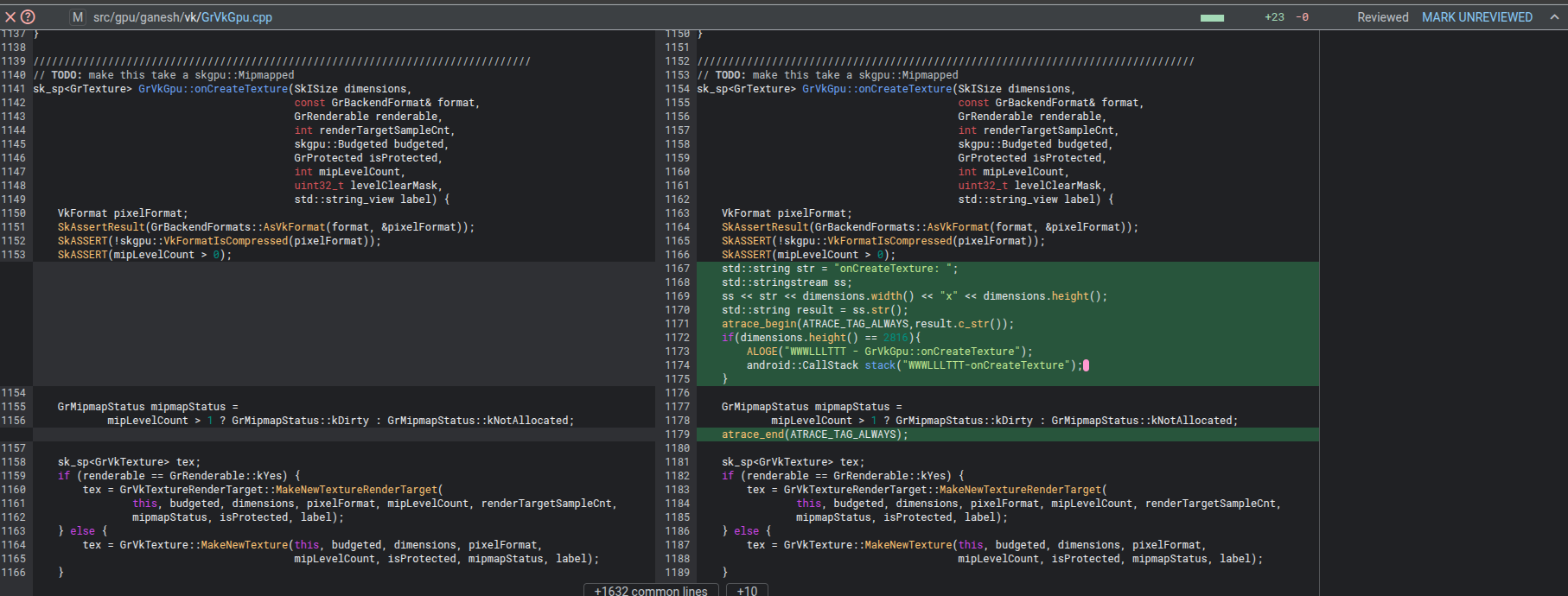

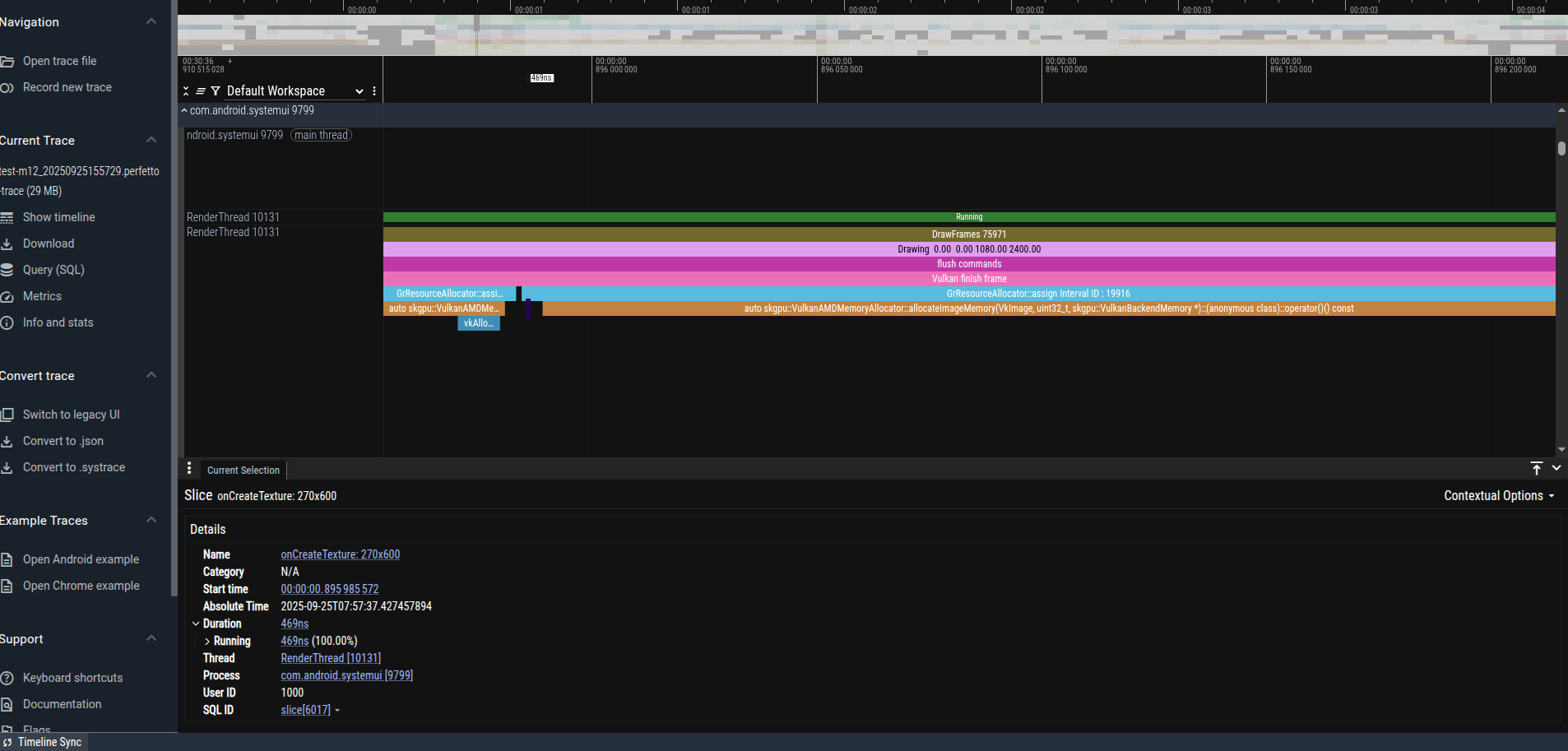

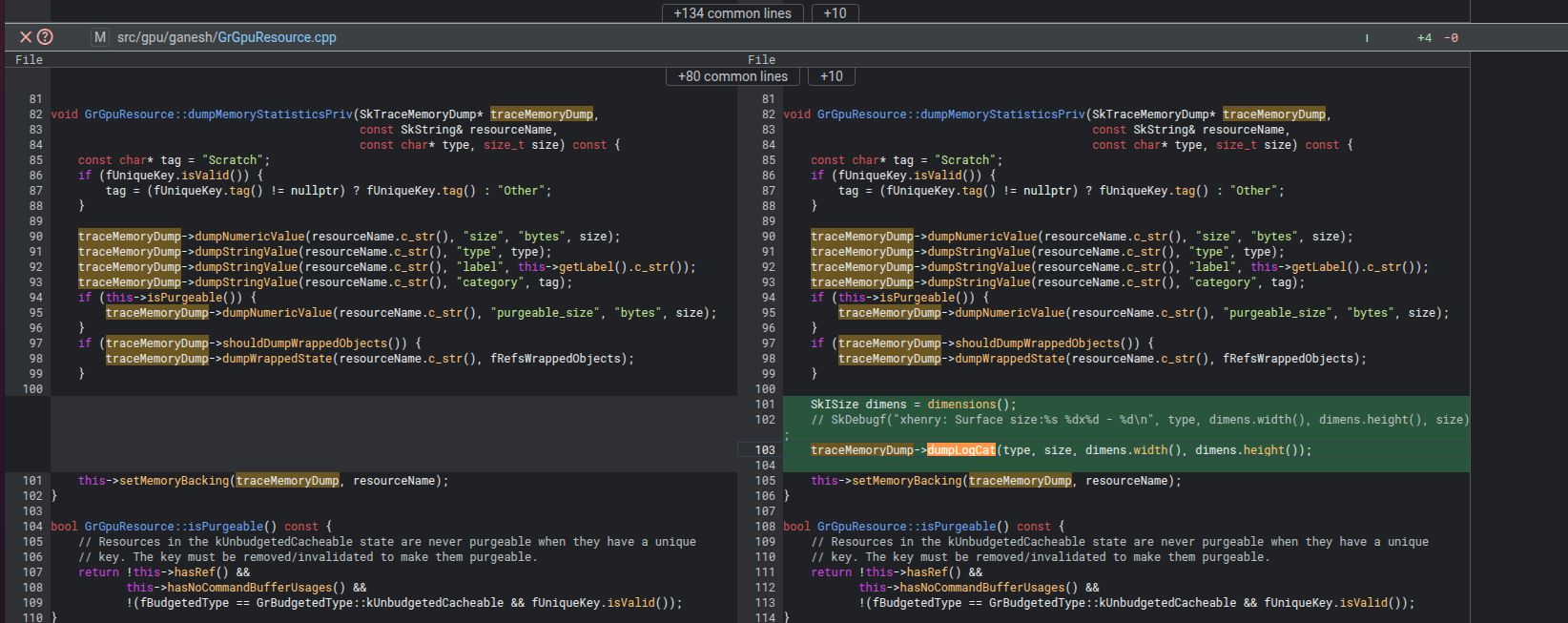

创建所有texture的方法中 输出尺寸

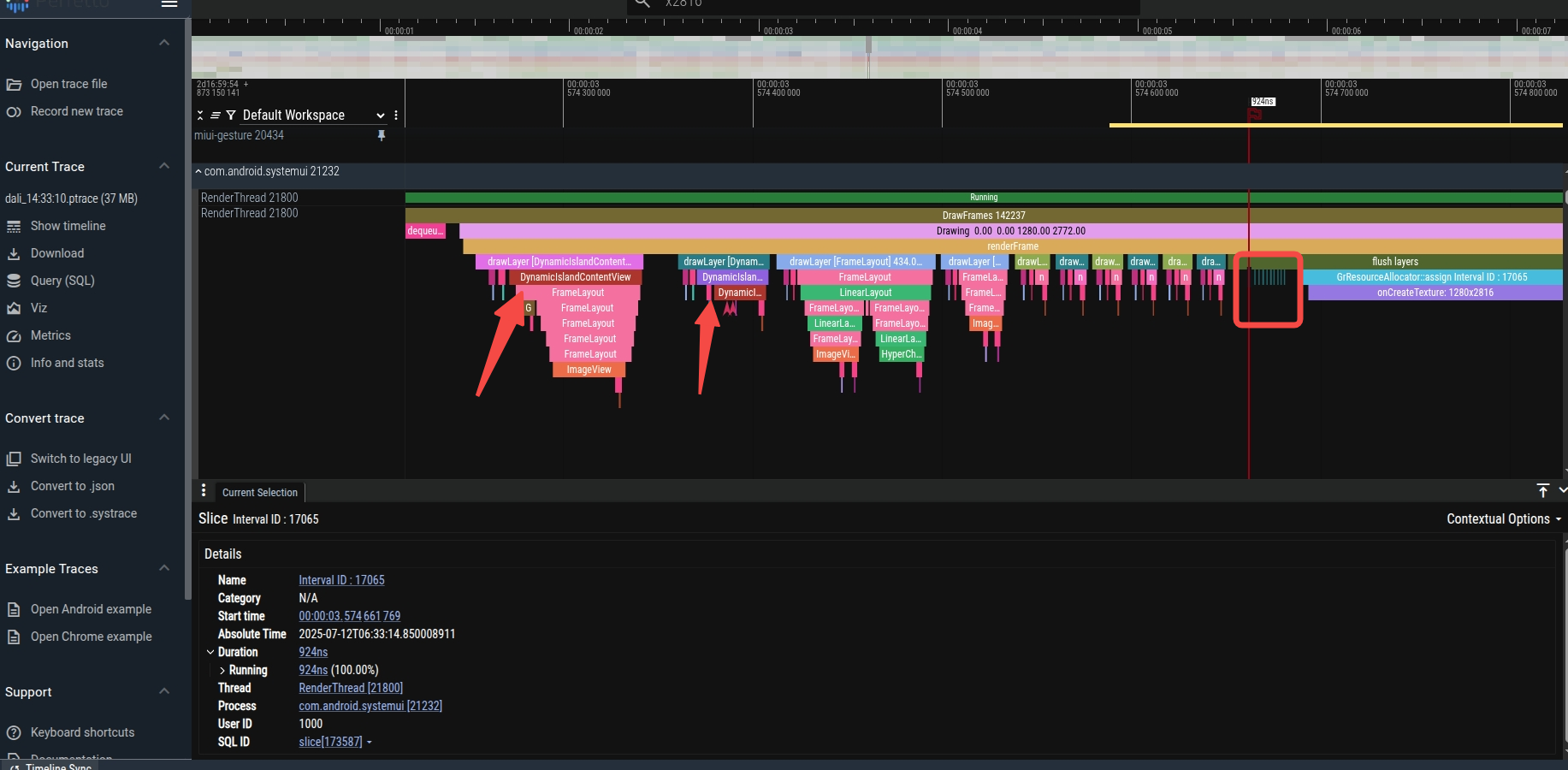

正常情况在prepareTree或者renderFrameImpl阶段去创建texture时，都可以正常找到对应的view

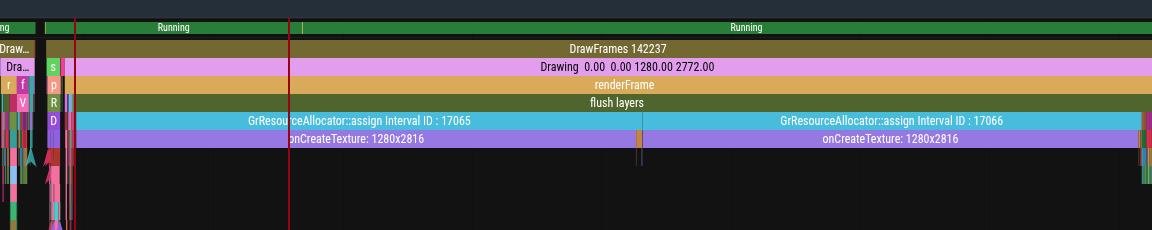

如果创建texture阶段在flush layers，则需要添加更详细的tag，如下：
07-11 16:27:23.764 18977 19062 E ndroid.systemui: WWWLLLTTT - GrVkGpu::onCreateTexture
07-11 16:27:23.784 18977 19062 D WWWLLLTTT-onCreateTexture: #00 pc 0000000000756d08 /system/lib64/libhwui.so (GrVkGpu::onCreateTexture(SkISize, GrBackendFormat const&, skgpu::Renderable, int, skgpu::Budgeted, skgpu::Protected, int, unsigned int, std::__1::basic_string_view<char, std::__1::char_traits<char>>)+488) (BuildId: 64598b83b3301756de9e829f9f0215da)
07-11 16:27:23.784 18977 19062 D WWWLLLTTT-onCreateTexture: #01 pc 0000000000621d38 /system/lib64/libhwui.so (GrGpu::createTextureCommon(SkISize, GrBackendFormat const&, GrTextureType, skgpu::Renderable, int, skgpu::Budgeted, skgpu::Protected, int, unsigned int, std::__1::basic_string_view<char, std::__1::char_traits<char>>)+280) (BuildId: 64598b83b3301756de9e829f9f0215da)
07-11 16:27:23.784 18977 19062 D WWWLLLTTT-onCreateTexture: #02 pc 0000000000621e88 /system/lib64/libhwui.so (GrGpu::createTexture(SkISize, GrBackendFormat const&, GrTextureType, skgpu::Renderable, int, skgpu::Mipmapped, skgpu::Budgeted, skgpu::Protected, std::__1::basic_string_view<char, std::__1::char_traits<char>>)+120) (BuildId: 64598b83b3301756de9e829f9f0215da)
07-11 16:27:23.784 18977 19062 D WWWLLLTTT-onCreateTexture: #03 pc 000000000063dcec /system/lib64/libhwui.so (GrResourceProvider::createTexture(SkISize, GrBackendFormat const&, GrTextureType, skgpu::Renderable, int, skgpu::Mipmapped, skgpu::Budgeted, skgpu::Protected, std::__1::basic_string_view<char, std::__1::char_traits<char>>)+332) (BuildId: 64598b83b3301756de9e829f9f0215da)
07-11 16:27:23.784 18977 19062 D WWWLLLTTT-onCreateTexture: #04 pc 0000000000642264 /system/lib64/libhwui.so (GrSurfaceProxy::createSurfaceImpl(GrResourceProvider*, int, skgpu::Renderable, skgpu::Mipmapped) const+132) (BuildId: 64598b83b3301756de9e829f9f0215da)
07-11 16:27:23.784 18977 19062 D WWWLLLTTT-onCreateTexture: #05 pc 000000000064566c /system/lib64/libhwui.so (virtual thunk to GrTextureRenderTargetProxy::createSurface(GrResourceProvider*) const+108) (BuildId: 64598b83b3301756de9e829f9f0215da)
07-11 16:27:23.784 18977 19062 D WWWLLLTTT-onCreateTexture: #06 pc 00000000006351e4 /system/lib64/libhwui.so (GrResourceAllocator::Register::instantiateSurface(GrSurfaceProxy*, GrResourceProvider*)+116) (BuildId: 64598b83b3301756de9e829f9f0215da)
07-11 16:27:23.784 18977 19062 D WWWLLLTTT-onCreateTexture: #07 pc 0000000000636004 /system/lib64/libhwui.so (GrResourceAllocator::assign()+84) (BuildId: 64598b83b3301756de9e829f9f0215da)
07-11 16:27:23.784 18977 19062 D WWWLLLTTT-onCreateTexture: #08 pc 000000000060de98 /system/lib64/libhwui.so (GrDrawingManager::flush(SkSpan<GrSurfaceProxy*>, SkSurfaces::BackendSurfaceAccess, GrFlushInfo const&, skgpu::MutableTextureState const*)+1688) (BuildId: 64598b83b3301756de9e829f9f0215da)
07-11 16:27:23.784 18977 19062 D WWWLLLTTT-onCreateTexture: #09 pc 000000000060ee30 /system/lib64/libhwui.so (GrDrawingManager::flushSurfaces(SkSpan<GrSurfaceProxy*>, SkSurfaces::BackendSurfaceAccess, GrFlushInfo const&, skgpu::MutableTextureState const*)+176) (BuildId: 64598b83b3301756de9e829f9f0215da)
07-11 16:27:23.784 18977 19062 D WWWLLLTTT-onCreateTexture: #10 pc 000000000060807c /system/lib64/libhwui.so (GrDirectContextPriv::flushSurfaces(SkSpan<GrSurfaceProxy*>, SkSurfaces::BackendSurfaceAccess, GrFlushInfo const&, skgpu::MutableTextureState const*)+236) (BuildId: 64598b83b3301756de9e829f9f0215da)
07-11 16:27:23.784 18977 19062 D WWWLLLTTT-onCreateTexture: #11 pc 0000000000605ce0 /system/lib64/libhwui.so (GrDirectContext::flush(SkSurface*, SkSurfaces::BackendSurfaceAccess, GrFlushInfo const&)+160) (BuildId: 64598b83b3301756de9e829f9f0215da)
07-11 16:27:23.784 18977 19062 D WWWLLLTTT-onCreateTexture: #12 pc 0000000000354744 /system/lib64/libhwui.so (android::uirenderer::renderthread::VulkanManager::finishFrame(SkSurface*)+436) (BuildId: 64598b83b3301756de9e829f9f0215da)
07-11 16:27:23.784 18977 19062 D WWWLLLTTT-onCreateTexture: #13 pc 0000000000347620 /system/lib64/libhwui.so (android::uirenderer::skiapipeline::SkiaVulkanPipeline::draw(android::uirenderer::renderthread::Frame const&, SkRect const&, SkRect const&, android::uirenderer::LightGeometry const&, android::uirenderer::LayerUpdateQueue*, android::uirenderer::Rect const&, bool, android::uirenderer::LightInfo const&, std::__1::vector<android::sp<android::uirenderer::RenderNode>, std::__1::allocator<android::sp<android::uirenderer::RenderNode>>> const&, android::uirenderer::FrameInfoVisualizer*, android::uirenderer::renderthread::HardwareBufferRenderParams const&, std::__1::mutex&, android::Region const&)+496) (BuildId: 64598b83b3301756de9e829f9f0215da)
07-11 16:27:23.784 18977 19062 D WWWLLLTTT-onCreateTexture: #14 pc 00000000002e3220 /system/lib64/libhwui.so (android::uirenderer::renderthread::CanvasContext::draw(bool)+1408) (BuildId: 64598b83b3301756de9e829f9f0215da)
07-11 16:27:23.784 18977 19062 D WWWLLLTTT-onCreateTexture: #15 pc 00000000002e702c /system/lib64/libhwui.so (android::uirenderer::renderthread::DrawFrameTask::run()+844) (BuildId: 64598b83b3301756de9e829f9f0215da)
07-11 16:27:23.784 18977 19062 D WWWLLLTTT-onCreateTexture: #16 pc 00000000002f5f80 /system/lib64/libhwui.so (android::uirenderer::WorkQueue::process()+592) (BuildId: 64598b83b3301756de9e829f9f0215da)
07-11 16:27:23.784 18977 19062 D WWWLLLTTT-onCreateTexture: #17 pc 00000000003591b4 /system/lib64/libhwui.so (android::uirenderer::renderthread::RenderThread::threadLoop()+116) (BuildId: 64598b83b3301756de9e829f9f0215da)
07-11 16:27:23.784 18977 19062 D WWWLLLTTT-onCreateTexture: #18 pc 000000000001a0e8 /system/lib64/libutils.so (android::Thread::_threadLoop(void*)+248) (BuildId: 53608a825a5da3b6272e26214a673ed8)
07-11 16:27:23.784 18977 19062 D WWWLLLTTT-onCreateTexture: #19 pc 000000000001c174 /system/lib64/libutils.so (libutil_thread_trampoline(void*) (.__uniq.226528677032898775202282855395389835431)+20) (BuildId: 53608a825a5da3b6272e26214a673ed8)
07-11 16:27:23.784 18977 19062 D WWWLLLTTT-onCreateTexture: #20 pc 0000000000083f3c /apex/com.android.runtime/lib64/bionic/libc.so (__pthread_start(void*)+236) (BuildId: 517881b6f57d65e4cf2b8b1f5d3a20f4)
07-11 16:27:23.784 18977 19062 D WWWLLLTTT-onCreateTexture: #21 pc 0000000000076460 /apex/com.android.runtime/lib64/bionic/libc.so (__start_thread+64) (BuildId: 517881b6f57d65e4cf2b8b1f5d3a20- onCreateTexture大部分通过GrResourceAllocator::assign()调用下去，其中会遍历Interval，其他非GrResourceAllocator::assign()需要根据不同的allocate堆栈添加对应的tag。
//external/skia/src/gpu/ganesh/GrResourceAllocator.cpp
bool GrResourceAllocator::assign() {
if (fFailedInstantiation) {
return false;
}
SkASSERT(fPlanned && !fAssigned);
SkDEBUGCODE(fAssigned = true;)
auto resourceProvider = fDContext->priv().resourceProvider();
//从fFinishedIntvls中按顺序取出Interval，一个optask会对应多个intvl，需要在intvl收集的时候就找到其对应的optask
while (Interval* cur = fFinishedIntvls.popHead()) {
if (fFailedInstantiation) {
break;
}
if (cur->proxy()->isInstantiated()) {
continue;
}
if (cur->proxy()->isLazy()) {
fFailedInstantiation = !cur->proxy()->priv().doLazyInstantiation(resourceProvider);
continue;
}
Register* r = cur->getRegister();
SkASSERT(r);
fFailedInstantiation = !r->instantiateSurface(cur->proxy(), resourceProvider);
}
return !fFailedInstantiation;

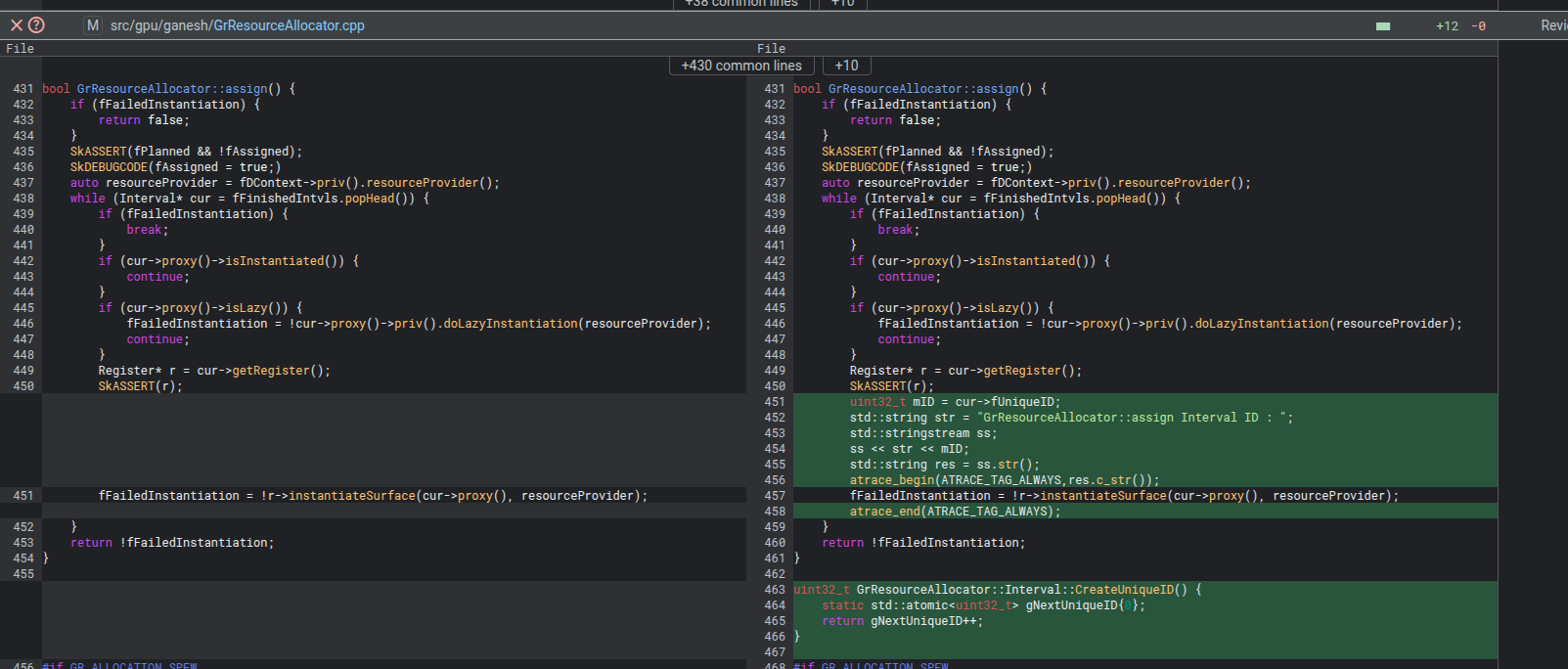

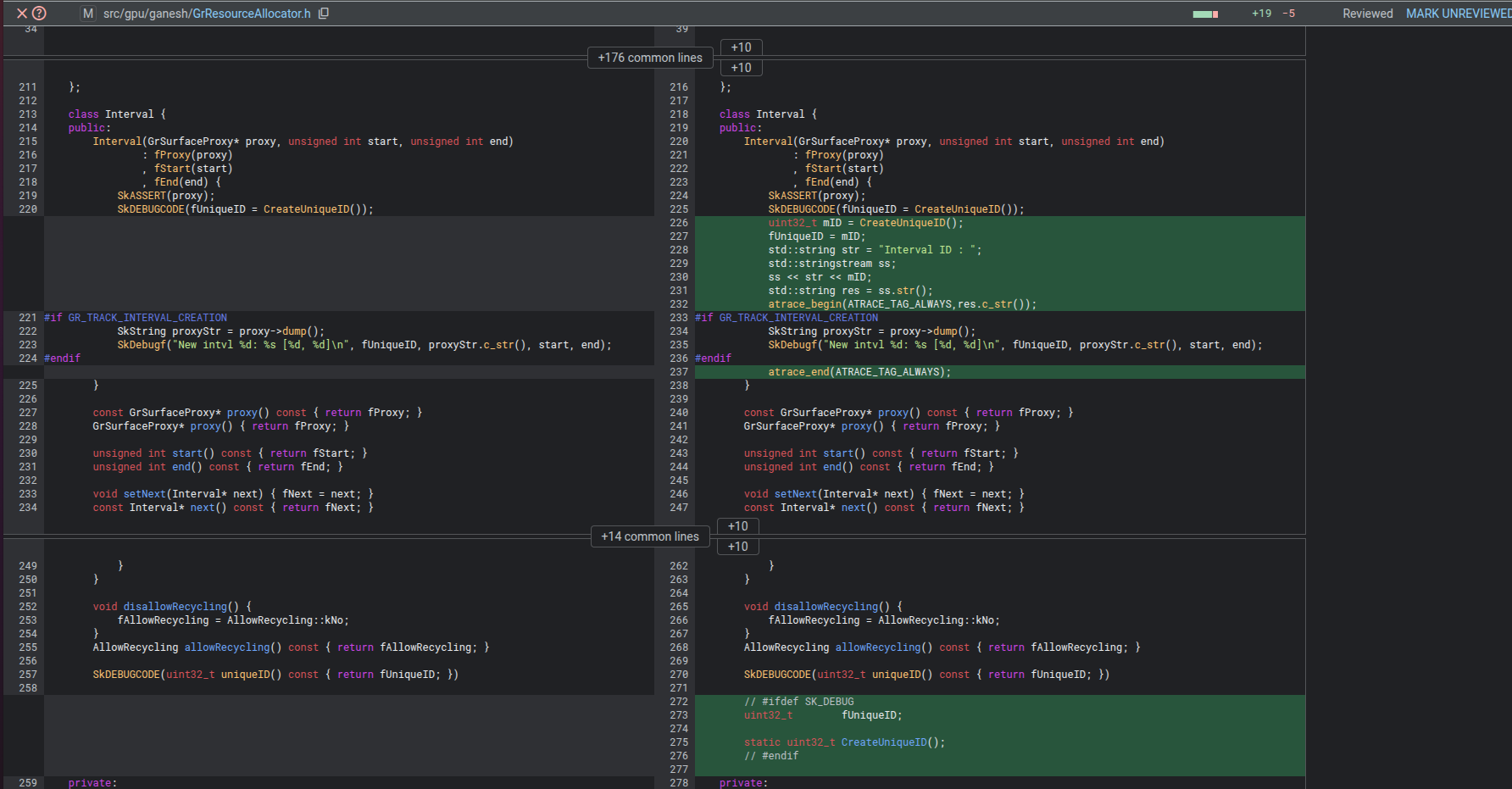

}- 需要在Interval初始化时就创建一个uniqueID，当Interval 去createTexture时，就输出构造Interval时创建的ID；
- 同时在Interval创建时，打印出task id，这样就可以通过 Interval id → task id → view的步骤找到对应的veiw
GL mtrack 拆解实战
通过cat mem_profile获取详细buffer通道，主要受Channel: GFX Device Memory CPU Uncached 、Vulkan Bound Buffer Memory、Vulkan Bound Image Memory三部分影响，具体buffer大小如下：
Channel: GFX Device Memory CPU Uncached (Total memory: 21606400)
Bin id Count / Memory
13: 2 / 8192
14: 8 / 65536
17: 3 / 270336
21: 2 / 2105344
22: 1 / 2101248
23: 4 / 17055744
Channel: Vulkan Bound Buffer Memory (Total memory: 385284)
Bin id Count / Memory
8: 2 / 372
9: 33 / 12560
10: 18 / 11520
11: 12 / 18816
15: 1 / 30720
16: 5 / 180224
17: 2 / 131072
Channel: Vulkan Bound Image Memory (Total memory: 17353152)
Bin id Count / Memory
14: 16 / 187456
15: 20 / 420992
16: 11 / 377472
18: 3 / 651264
19: 2 / 774656
20: 16 / 10484864
23: 1 / 4456448
操作后：
Channel: GFX Device Memory CPU Uncached (Total memory: 25804800)
Bin id Count / Memory
13: 2 / 8192
14: 8 / 65536
17: 3 / 270336
21: 2 / 2105344
22: 1 / 2101248
23: 5 / 21254144频繁操作某个场景后，GFX Device Memory CPU Uncached多了一个4198400大小的buffer不释放。
//external/angle/third_party/vulkan_memory_allocator/include/vk_mem_alloc.h

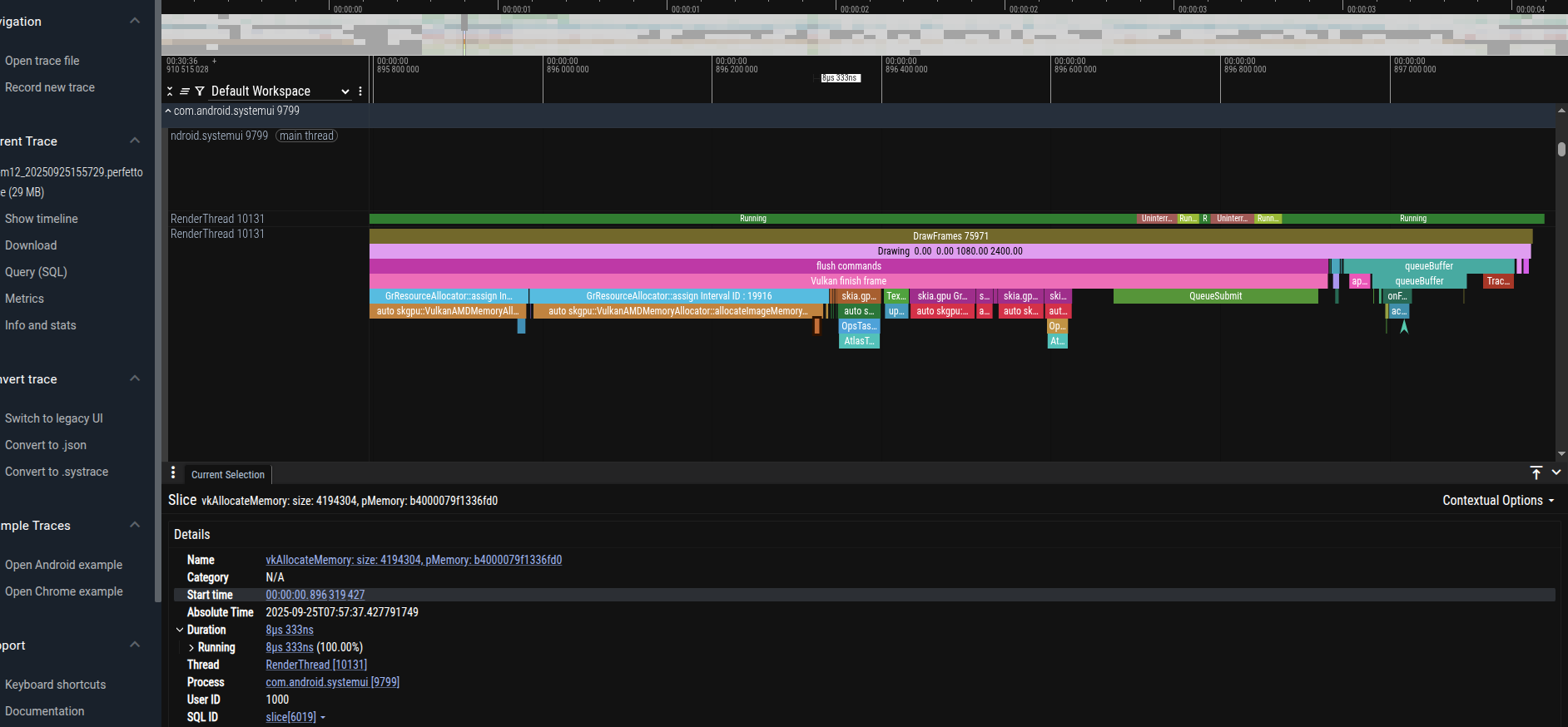

VmaAllocator_T::AllocateVulkanMemory — 最常见的申请vulkan内存方式
07-24 15:37:33.713 32746 454 E ndroid.systemui: XRING-O1:cutils_histogram_add class is Channel: GFX Device Memory CPU Uncached, bytes is 4198400
07-24 15:37:33.725 32746 454 D xring-gpu:cutils_histogram_add: #00 pc 0000000000dbcb9c /vendor/lib64/egl/libGLES_mali.so (BuildId: fabe4c713a323cf6)
07-24 15:37:33.725 32746 454 D xring-gpu:cutils_histogram_add: #01 pc 0000000000c81f30 /vendor/lib64/egl/libGLES_mali.so (BuildId: fabe4c713a323cf6)
07-24 15:37:33.725 32746 454 D xring-gpu:cutils_histogram_add: #02 pc 0000000000c814cc /vendor/lib64/egl/libGLES_mali.so (BuildId: fabe4c713a323cf6)
07-24 15:37:33.725 32746 454 D xring-gpu:cutils_histogram_add: #03 pc 0000000000c808f8 /vendor/lib64/egl/libGLES_mali.so (BuildId: fabe4c713a323cf6)
07-24 15:37:33.725 32746 454 D xring-gpu:cutils_histogram_add: #04 pc 0000000000c803dc /vendor/lib64/egl/libGLES_mali.so (BuildId: fabe4c713a323cf6)
07-24 15:37:33.725 32746 454 D xring-gpu:cutils_histogram_add: #05 pc 0000000000dbc648 /vendor/lib64/egl/libGLES_mali.so (BuildId: fabe4c713a323cf6)
07-24 15:37:33.725 32746 454 D xring-gpu:cutils_histogram_add: #06 pc 0000000000f36f2c /vendor/lib64/egl/libGLES_mali.so (BuildId: fabe4c713a323cf6)
07-24 15:37:33.725 32746 454 D xring-gpu:cutils_histogram_add: #07 pc 00000000005f1c18 /system/lib64/libhwui.so (VmaAllocator_T::AllocateVulkanMemory(VkMemoryAllocateInfo const*, VkDeviceMemory_T**)+192) (BuildId: 221c7c7a2938b90dc1512d7a2d73b7cc)
07-24 15:37:33.725 32746 454 D xring-gpu:cutils_histogram_add: #08 pc 00000000005f3998 /system/lib64/libhwui.so (VmaBlockVector::CreateBlock(unsigned long, unsigned long*)+208) (BuildId: 221c7c7a2938b90dc1512d7a2d73b7cc)
07-24 15:37:33.725 32746 454 D xring-gpu:cutils_histogram_add: #09 pc 00000000005f0ed4 /system/lib64/libhwui.so (VmaAllocator_T::AllocateMemoryOfType(VmaPool_T*, unsigned long, unsigned long, bool, VkBuffer_T*, VkImage_T*, unsigned int, VmaAllocationCreateInfo const&, unsigned int, VmaSuballocationType, VmaDedicatedAllocationList&, VmaBlockVector&, unsigned long, VmaAllocation_T**)+1008) (BuildId: 221c7c7a2938b90dc1512d7a2d73b7cc)
07-24 15:37:33.725 32746 454 D xring-gpu:cutils_histogram_add: #10 pc 00000000005f0804 /system/lib64/libhwui.so (VmaAllocator_T::AllocateMemory(VkMemoryRequirements const&, bool, bool, VkBuffer_T*, VkImage_T*, unsigned int, VmaAllocationCreateInfo const&, VmaSuballocationType, unsigned long, VmaAllocation_T**)+296) (BuildId: 221c7c7a2938b90dc1512d7a2d73b7cc)
07-24 15:37:33.725 32746 454 D xring-gpu:cutils_histogram_add: #11 pc 00000000005f0668 /system/lib64/libhwui.so (vmaAllocateMemoryForImage+244) (BuildId: 221c7c7a2938b90dc1512d7a2d73b7cc)
07-24 15:37:33.725 32746 454 D xring-gpu:cutils_histogram_add: #12 pc 00000000007769b0 /system/lib64/libhwui.so (skgpu::VulkanAMDMemoryAllocator::allocateImageMemory(VkImage_T*, unsigned int, long*)+268) (BuildId: 221c7c7a2938b90dc1512d7a2d73b7cc)
07-24 15:37:33.725 32746 454 D xring-gpu:cutils_histogram_add: #13 pc 00000000005d3764 /system/lib64/libhwui.so (GrVkImage::InitImageInfo(GrVkGpu*, GrVkImage::ImageDesc const&, GrVkImageInfo*)+380) (BuildId: 221c7c7a2938b90dc1512d7a2d73b7cc)
07-24 15:37:33.725 32746 454 D xring-gpu:cutils_histogram_add: #14 pc 00000000005d2b60 /system/lib64/libhwui.so (GrVkImage::Make(GrVkGpu*, SkISize, GrAttachment::UsageFlags, int, VkFormat, unsigned int, unsigned int, skgpu::Protected, GrMemoryless, skgpu::Budgeted)+164) (BuildId: 221c7c7a2938b90dc1512d7a2d73b7cc)
07-24 15:37:33.725 32746 454 D xring-gpu:cutils_histogram_add: #15 pc 00000000005d0630 /system/lib64/libhwui.so (GrVkTextureRenderTarget::MakeNewTextureRenderTarget(GrVkGpu*, skgpu::Budgeted, SkISize, VkFormat, unsigned int, int, GrMipmapStatus, skgpu::Protected, std::__1::basic_string_view<char, std::__1::char_traits<char>>)+116) (BuildId: 221c7c7a2938b90dc1512d7a2d73b7cc)
07-24 15:37:33.725 32746 454 D xring-gpu:cutils_histogram_add: #16 pc 0000000000777008 /system/lib64/libhwui.so (GrVkGpu::onCreateTexture(SkISize, GrBackendFormat const&, skgpu::Renderable, int, skgpu::Budgeted, skgpu::Protected, int, unsigned int, std::__1::basic_string_view<char, std::__1::char_traits<char>>)+920) (BuildId: 221c7c7a2938b90dc1512d7a2d73b7cc)
07-24 15:37:33.725 32746 454 D xring-gpu:cutils_histogram_add: #17 pc 000000000055a994 /system/lib64/libhwui.so (GrGpu::createTextureCommon(SkISize, GrBackendFormat const&, GrTextureType, skgpu::Renderable, int, skgpu::Budgeted, skgpu::Protected, int, unsigned int, std::__1::basic_string_view<char, std::__1::char_traits<char>>)+236) (BuildId: 221c7c7a2938b90dc1512d7a2d73b7cc)
07-24 15:37:33.725 32746 454 D xring-gpu:cutils_histogram_add: #18 pc 00000000004e231c /system/lib64/libhwui.so (GrResourceProvider::createTexture(SkISize, GrBackendFormat const&, GrTextureType, skgpu::Renderable, int, skgpu::Mipmapped, skgpu::Budgeted, skgpu::Protected, std::__1::basic_string_view<char, std::__1::char_traits<char>>)+472) (BuildId: 221c7c7a2938b90dc1512d7a2d73b7cc)
07-24 15:37:33.725 32746 454 D xring-gpu:cutils_histogram_add: #19 pc 000000000055af10 /system/lib64/libhwui.so (GrSurfaceProxy::createSurfaceImpl(GrResourceProvider*, int, skgpu::Renderable, skgpu::Mipmapped) const+136) (BuildId: 221c7c7a2938b90dc1512d7a2d73b7cc)
07-24 15:37:33.725 32746 454 D xring-gpu:cutils_histogram_add: #20 pc 000000000055ae1c /system/lib64/libhwui.so (GrTextureRenderTargetProxy::createSurface(GrResourceProvider*) const+92) (BuildId: 221c7c7a2938b90dc1512d7a2d73b7cc)
07-24 15:37:33.725 32746 454 D xring-gpu:cutils_histogram_add: #21 pc 00000000009d9c0c /system/lib64/libhwui.so (GrResourceAllocator::Register::instantiateSurface(GrSurfaceProxy*, GrResourceProvider*)+344) (BuildId: 221c7c7a2938b90dc1512d7a2d73b7cc)
07-24 15:37:33.725 32746 454 D xring-gpu:cutils_histogram_add: #22 pc 00000000004ba500 /system/lib64/libhwui.so (GrResourceAllocator::assign()+368) (BuildId: 221c7c7a2938b90dc1512d7a2d73b7cc)
07-24 15:37:33.725 32746 454 D xring-gpu:cutils_histogram_add: #23 pc 0000000000402178 /system/lib64/libhwui.so (GrDrawingManager::flush(SkSpan<GrSurfaceProxy*>, SkSurfaces::BackendSurfaceAccess, GrFlushInfo const&, skgpu::MutableTextureState const*)+6536) (BuildId: 221c7c7a2938b90dc1512d7a2d73b7cc)
07-24 15:37:33.725 32746 454 D xring-gpu:cutils_histogram_add: #24 pc 0000000000494578 /system/lib64/libhwui.so (GrDirectContextPriv::flushSurfaces(SkSpan<GrSurfaceProxy*>, SkSurfaces::BackendSurfaceAccess, GrFlushInfo const&, skgpu::MutableTextureState const*)+200) (BuildId: 221c7c7a2938b90dc1512d7a2d73b7cc)
07-24 15:37:33.725 32746 454 D xring-gpu:cutils_histogram_add: #25 pc 00000000009cb8a4 /system/lib64/libhwui.so (GrDirectContext::flush(SkSurface*, SkSurfaces::BackendSurfaceAccess, GrFlushInfo const&)+140) (BuildId: 221c7c7a2938b90dc1512d7a2d73b7cc)
07-24 15:37:33.725 32746 454 D xring-gpu:cutils_histogram_add: #26 pc 00000000008b7ec0 /system/lib64/libhwui.so (android::uirenderer::renderthread::VulkanManager::finishFrame(SkSurface*)+528) (BuildId: 221c7c7a2938b90dc1512d7a2d73b7cc)
07-24 15:37:33.725 32746 454 D xring-gpu:cutils_histogram_add: #27 pc 00000000008ae488 /system/lib64/libhwui.so (android::uirenderer::skiapipeline::SkiaVulkanPipeline::draw(android::uirenderer::renderthread::Frame const&, SkRect const&, SkRect const&, android::uirenderer::LightGeometry const&, android::uirenderer::LayerUpdateQueue*, android::uirenderer::Rect const&, bool, android::uirenderer::LightInfo const&, std::__1::vector<android::sp<android::uirenderer::RenderNode>, std::__1::allocator<android::sp<android::uirenderer::RenderNode>>> const&, android::uirenderer::FrameInfoVisualizer*, android::uirenderer::renderthread::HardwareBufferRenderParams const&, std::__1::mutex&, android::Region const&)+536) (BuildId: 221c7c7a2938b90dc1512d7a2d73b7cc)
07-24 15:37:33.725 32746 454 D xring-gpu:cutils_histogram_add: #28 pc 000000000048fc38 /system/lib64/libhwui.so (android::uirenderer::renderthread::CanvasContext::draw(bool)+2044) (BuildId: 221c7c7a2938b90dc1512d7a2d73b7cc)
07-24 15:37:33.725 32746 454 D xring-gpu:cutils_histogram_add: #29 pc 000000000048d7fc /system/lib64/libhwui.so (android::uirenderer::renderthread::DrawFrameTask::run()+3232) (BuildId: 221c7c7a2938b90dc1512d7a2d73b7cc)
07-24 15:37:33.725 32746 454 D xring-gpu:cutils_histogram_add: #30 pc 000000000060358c /system/lib64/libhwui.so (android::uirenderer::renderthread::RenderThread::threadLoop()+764) (BuildId: 221c7c7a2938b90dc1512d7a2d73b7cc)
07-24 15:37:33.725 32746 454 D xring-gpu:cutils_histogram_add: #31 pc 0000000000019fd8 /system/lib64/libutils.so (android::Thread::_threadLoop(void*)+248) (BuildId: 4b1691936eed20bb9d1f28f76e3d264e)
07-24 15:37:33.725 32746 454 D xring-gpu:cutils_histogram_add: #32 pc 000000000001beec /system/lib64/libutils.so (libutil_thread_trampoline(void*) (.__uniq.226528677032898775202282855395389835431)+20) (BuildId: 4b1691936eed20bb9d1f28f76e3d264e)
07-24 15:37:33.725 32746 454 D xring-gpu:cutils_histogram_add: #33 pc 000000000007faf8 /apex/com.android.runtime/lib64/bionic/libc.so (__pthread_start(void*)+232) (BuildId: 321fbc20a04b7667eb38749b2cd93310)
07-24 15:37:33.725 32746 454 D xring-gpu:cutils_histogram_add: #34 pc 0000000000072e44 /apex/com.android.runtime/lib64/bionic/libc.so (__start_thread+64) (BuildId: 321fbc20a04b7667eb38749b2cd93310)
07-24 15:37:33.725 32746 454 E ndroid.systemui: XRING-O1: end in vkAllocateMemory: VkDeviceMemory:0xb4000071bdb57510, size:0x400000, memoryTypeIndex:0x0
07-24 15:37:33.725 32746 454 E ndroid.systemui: CSTEST:in skia, size : 4194304 the allocate pMemory is b4000071bdb57510 - 相同的VkDeviceMemory 地址，在GPU侧统计的大小是4198400，直接在trace上搜是找不到的，因为在skia侧统计的实际大小是4194304，大小比较接近但是还有误差，具体原因可能是计算方式存在区别？

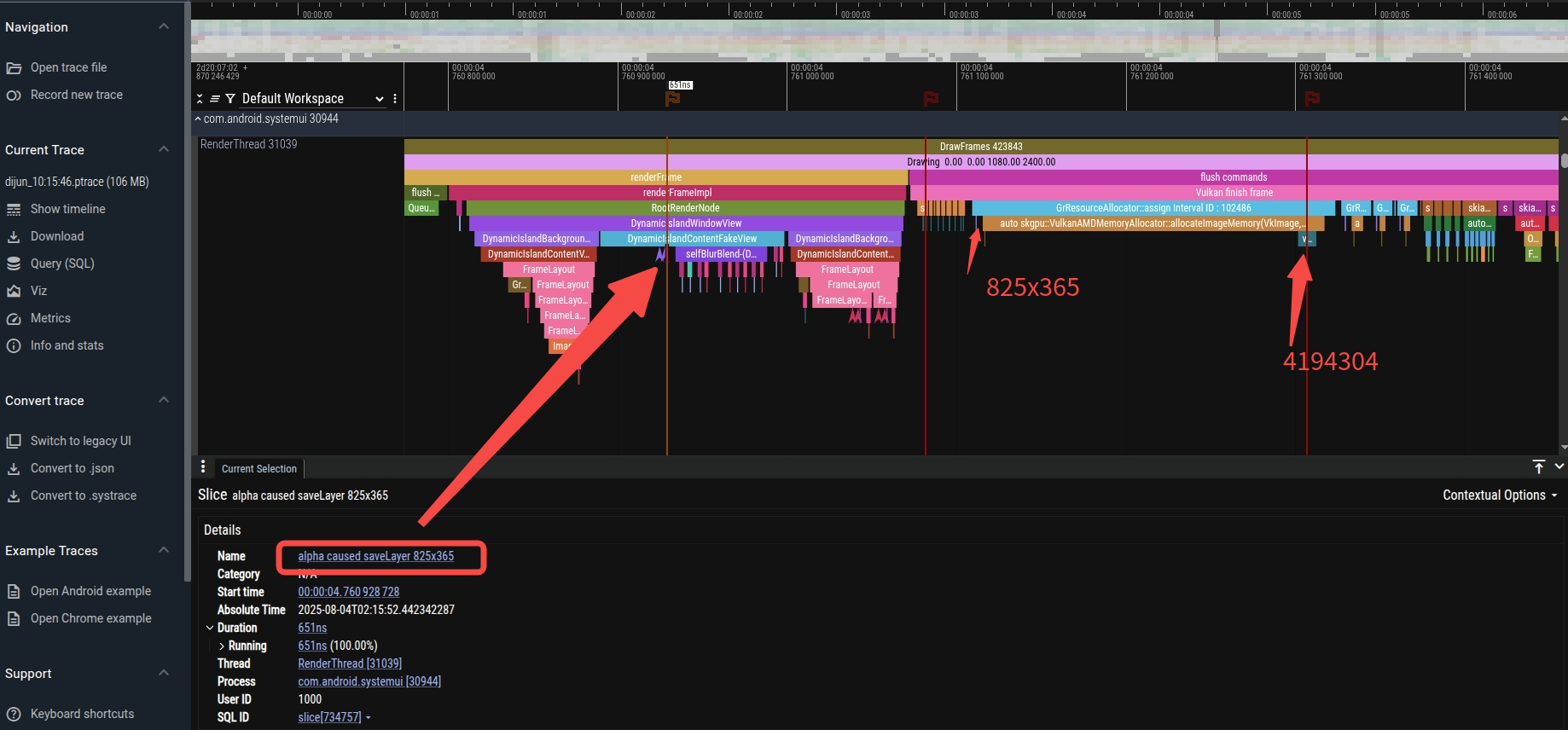

结合上文提到的GL+trace方案：

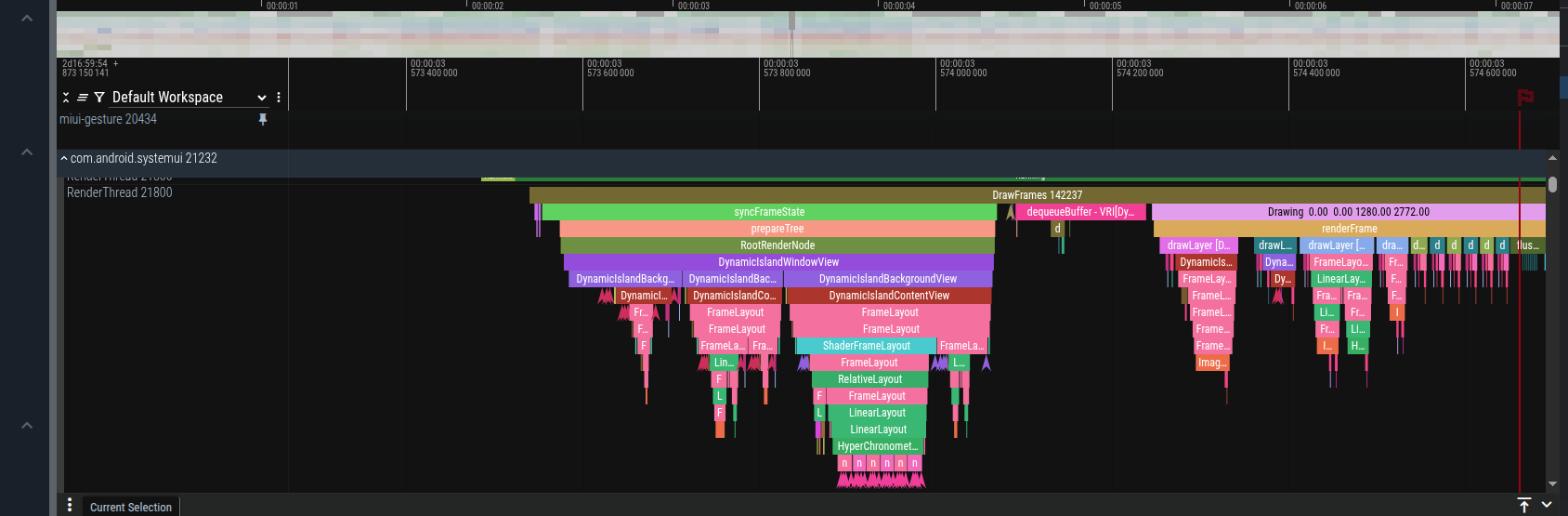

创建该texture的原因是 DynamicIslandContentFakeView要做alpha操作，需要创建离屏的buffer，特别注意，对于view的alpha操作需要在view可见时进行，不然可能出现预期之外的内存泄漏问题O8-OS2.2 GPU memory泄漏问题分析，https://gerrit.pt.mioffice.cn/c/platform/packages/apps/MiuiSystemUI/+/5667746
- 对于效果不明显或者没有view重叠的alpha操作，可以改成非离屏渲染，优化性能；
其他Allocate mem的地方还有很多，需要添加对应的tag去定位问题，添加方式和GL+trace日志增强方案类似
- 不通过GrResourceAllocator::assign()调用的堆栈：
07-24 15:37:00.091 32746 454 E ndroid.systemui: XRING-O1:cutils_histogram_add class is Channel: GFX Device Memory CPU Uncached, bytes is 4198400
07-24 15:37:00.103 32746 454 D xring-gpu:cutils_histogram_add: #00 pc 0000000000dbcb9c /vendor/lib64/egl/libGLES_mali.so (BuildId: fabe4c713a323cf6)
07-24 15:37:00.103 32746 454 D xring-gpu:cutils_histogram_add: #01 pc 0000000000c81f30 /vendor/lib64/egl/libGLES_mali.so (BuildId: fabe4c713a323cf6)
07-24 15:37:00.103 32746 454 D xring-gpu:cutils_histogram_add: #02 pc 0000000000c814cc /vendor/lib64/egl/libGLES_mali.so (BuildId: fabe4c713a323cf6)
07-24 15:37:00.103 32746 454 D xring-gpu:cutils_histogram_add: #03 pc 0000000000c808f8 /vendor/lib64/egl/libGLES_mali.so (BuildId: fabe4c713a323cf6)
07-24 15:37:00.103 32746 454 D xring-gpu:cutils_histogram_add: #04 pc 0000000000c803dc /vendor/lib64/egl/libGLES_mali.so (BuildId: fabe4c713a323cf6)
07-24 15:37:00.103 32746 454 D xring-gpu:cutils_histogram_add: #05 pc 0000000000dbc648 /vendor/lib64/egl/libGLES_mali.so (BuildId: fabe4c713a323cf6)
07-24 15:37:00.103 32746 454 D xring-gpu:cutils_histogram_add: #06 pc 0000000000f36f2c /vendor/lib64/egl/libGLES_mali.so (BuildId: fabe4c713a323cf6)
07-24 15:37:00.103 32746 454 D xring-gpu:cutils_histogram_add: #07 pc 00000000005f1c18 /system/lib64/libhwui.so (VmaAllocator_T::AllocateVulkanMemory(VkMemoryAllocateInfo const*, VkDeviceMemory_T**)+192) (BuildId: 221c7c7a2938b90dc1512d7a2d73b7cc)
07-24 15:37:00.103 32746 454 D xring-gpu:cutils_histogram_add: #08 pc 00000000005f3998 /system/lib64/libhwui.so (VmaBlockVector::CreateBlock(unsigned long, unsigned long*)+208) (BuildId: 221c7c7a2938b90dc1512d7a2d73b7cc)
07-24 15:37:00.103 32746 454 D xring-gpu:cutils_histogram_add: #09 pc 00000000005f0ed4 /system/lib64/libhwui.so (VmaAllocator_T::AllocateMemoryOfType(VmaPool_T*, unsigned long, unsigned long, bool, VkBuffer_T*, VkImage_T*, unsigned int, VmaAllocationCreateInfo const&, unsigned int, VmaSuballocationType, VmaDedicatedAllocationList&, VmaBlockVector&, unsigned long, VmaAllocation_T**)+1008) (BuildId: 221c7c7a2938b90dc1512d7a2d73b7cc)
07-24 15:37:00.103 32746 454 D xring-gpu:cutils_histogram_add: #10 pc 00000000005f0804 /system/lib64/libhwui.so (VmaAllocator_T::AllocateMemory(VkMemoryRequirements const&, bool, bool, VkBuffer_T*, VkImage_T*, unsigned int, VmaAllocationCreateInfo const&, VmaSuballocationType, unsigned long, VmaAllocation_T**)+296) (BuildId: 221c7c7a2938b90dc1512d7a2d73b7cc)
07-24 15:37:00.103 32746 454 D xring-gpu:cutils_histogram_add: #11 pc 00000000005f0500 /system/lib64/libhwui.so (vmaAllocateMemoryForBuffer+244) (BuildId: 221c7c7a2938b90dc1512d7a2d73b7cc)
07-24 15:37:00.103 32746 454 D xring-gpu:cutils_histogram_add: #12 pc 000000000078b8b4 /system/lib64/libhwui.so (skgpu::VulkanAMDMemoryAllocator::allocateBufferMemory(VkBuffer_T*, skgpu::VulkanMemoryAllocator::BufferUsage, unsigned int, long*)+148) (BuildId: 221c7c7a2938b90dc1512d7a2d73b7cc)
07-24 15:37:00.103 32746 454 D xring-gpu:cutils_histogram_add: #13 pc 00000000005cfb14 /system/lib64/libhwui.so (GrVkBuffer::Make(GrVkGpu*, unsigned long, GrGpuBufferType, GrAccessPattern)+396) (BuildId: 221c7c7a2938b90dc1512d7a2d73b7cc)
07-24 15:37:00.103 32746 454 D xring-gpu:cutils_histogram_add: #14 pc 0000000000761178 /system/lib64/libhwui.so (GrVkGpu::onCreateBuffer(unsigned long, GrGpuBufferType, GrAccessPattern)+36) (BuildId: 221c7c7a2938b90dc1512d7a2d73b7cc)
07-24 15:37:00.103 32746 454 D xring-gpu:cutils_histogram_add: #15 pc 0000000000480b98 /system/lib64/libhwui.so (GrGpu::createBuffer(unsigned long, GrGpuBufferType, GrAccessPattern)+104) (BuildId: 221c7c7a2938b90dc1512d7a2d73b7cc)
07-24 15:37:00.103 32746 454 D xring-gpu:cutils_histogram_add: #16 pc 0000000000480f4c /system/lib64/libhwui.so (GrResourceProvider::createBuffer(unsigned long, GrGpuBufferType, GrAccessPattern, GrResourceProvider::ZeroInit)+492) (BuildId: 221c7c7a2938b90dc1512d7a2d73b7cc)
07-24 15:37:00.103 32746 454 D xring-gpu:cutils_histogram_add: #17 pc 0000000000798da8 /system/lib64/libhwui.so (GrStagingBufferManager::allocateStagingBufferSlice(unsigned long, unsigned long)+184) (BuildId: 221c7c7a2938b90dc1512d7a2d73b7cc)
07-24 15:37:00.103 32746 454 D xring-gpu:cutils_histogram_add: #18 pc 0000000000798638 /system/lib64/libhwui.so (GrVkGpu::onWritePixels(GrSurface*, SkIRect, GrColorType, GrColorType, GrMipLevel const*, int, bool)+592) (BuildId: 221c7c7a2938b90dc1512d7a2d73b7cc)
07-24 15:37:00.103 32746 454 D xring-gpu:cutils_histogram_add: #19 pc 000000000055a188 /system/lib64/libhwui.so (GrGpu::writePixels(GrSurface*, SkIRect, GrColorType, GrColorType, GrMipLevel const*, int, bool)+460) (BuildId: 221c7c7a2938b90dc1512d7a2d73b7cc)
07-24 15:37:00.103 32746 454 D xring-gpu:cutils_histogram_add: #20 pc 0000000000559b84 /system/lib64/libhwui.so (GrOpFlushState::doUpload(std::__1::function<void (std::__1::function<bool (GrTextureProxy*, SkIRect, GrColorType, void const*, unsigned long)>&)>&, bool)::$_0::operator()(GrTextureProxy*, SkIRect, GrColorType, void const*, unsigned long) const (.__uniq.202563907186678916635362162699847805487)+332) (BuildId: 221c7c7a2938b90dc1512d7a2d73b7cc)
07-24 15:37:00.103 32746 454 D xring-gpu:cutils_histogram_add: #21 pc 00000000007a31f0 /system/lib64/libhwui.so (GrDeferredProxyUploader::scheduleUpload(GrOpFlushState*, GrTextureProxy*)::'lambda'(std::__1::function<bool (GrTextureProxy*, SkIRect, GrColorType, void const*, unsigned long)>&)::operator()(std::__1::function<bool (GrTextureProxy*, SkIRect, GrColorType, void const*, unsigned long)>&) const+180) (BuildId: 221c7c7a2938b90dc1512d7a2d73b7cc)
07-24 15:37:00.103 32746 454 D xring-gpu:cutils_histogram_add: #22 pc 00000000009d6914 /system/lib64/libhwui.so (GrOpFlushState::doUpload(std::__1::function<void (std::__1::function<bool (GrTextureProxy*, SkIRect, GrColorType, void const*, unsigned long)>&)>&, bool)+88) (BuildId: 221c7c7a2938b90dc1512d7a2d73b7cc)
07-24 15:37:00.103 32746 454 D xring-gpu:cutils_histogram_add: #23 pc 000000000042bbb4 /system/lib64/libhwui.so (GrOpFlushState::preExecuteDraws()+60) (BuildId: 221c7c7a2938b90dc1512d7a2d73b7cc)
07-24 15:37:00.103 32746 454 D xring-gpu:cutils_histogram_add: #24 pc 00000000004021f8 /system/lib64/libhwui.so (GrDrawingManager::flush(SkSpan<GrSurfaceProxy*>, SkSurfaces::BackendSurfaceAccess, GrFlushInfo const&, skgpu::MutableTextureState const*)+6664) (BuildId: 221c7c7a2938b90dc1512d7a2d73b7cc)
07-24 15:37:00.103 32746 454 D xring-gpu:cutils_histogram_add: #25 pc 0000000000494578 /system/lib64/libhwui.so (GrDirectContextPriv::flushSurfaces(SkSpan<GrSurfaceProxy*>, SkSurfaces::BackendSurfaceAccess, GrFlushInfo const&, skgpu::MutableTextureState const*)+200) (BuildId: 221c7c7a2938b90dc1512d7a2d73b7cc)
07-24 15:37:00.103 32746 454 D xring-gpu:cutils_histogram_add: #26 pc 00000000009cb8a4 /system/lib64/libhwui.so (GrDirectContext::flush(SkSurface*, SkSurfaces::BackendSurfaceAccess, GrFlushInfo const&)+140) (BuildId: 221c7c7a2938b90dc1512d7a2d73b7cc)
07-24 15:37:00.103 32746 454 D xring-gpu:cutils_histogram_add: #27 pc 00000000008b7ec0 /system/lib64/libhwui.so (android::uirenderer::renderthread::VulkanManager::finishFrame(SkSurface*)+528) (BuildId: 221c7c7a2938b90dc1512d7a2d73b7cc)
07-24 15:37:00.103 32746 454 D xring-gpu:cutils_histogram_add: #28 pc 00000000008ae488 /system/lib64/libhwui.so (android::uirenderer::skiapipeline::SkiaVulkanPipeline::draw(android::uirenderer::renderthread::Frame const&, SkRect const&, SkRect const&, android::uirenderer::LightGeometry const&, android::uirenderer::LayerUpdateQueue*, android::uirenderer::Rect const&, bool, android::uirenderer::LightInfo const&, std::__1::vector<android::sp<android::uirenderer::RenderNode>, std::__1::allocator<android::sp<android::uirenderer::RenderNode>>> const&, android::uirenderer::FrameInfoVisualizer*, android::uirenderer::renderthread::HardwareBufferRenderParams const&, std::__1::mutex&, android::Region const&)+536) (BuildId: 221c7c7a2938b90dc1512d7a2d73b7cc)
07-24 15:37:00.103 32746 454 D xring-gpu:cutils_histogram_add: #29 pc 000000000048fc38 /system/lib64/libhwui.so (android::uirenderer::renderthread::CanvasContext::draw(bool)+2044) (BuildId: 221c7c7a2938b90dc1512d7a2d73b7cc)
07-24 15:37:00.103 32746 454 D xring-gpu:cutils_histogram_add: #30 pc 000000000048d7fc /system/lib64/libhwui.so (android::uirenderer::renderthread::DrawFrameTask::run()+3232) (BuildId: 221c7c7a2938b90dc1512d7a2d73b7cc)
07-24 15:37:00.103 32746 454 D xring-gpu:cutils_histogram_add: #31 pc 000000000060358c /system/lib64/libhwui.so (android::uirenderer::renderthread::RenderThread::threadLoop()+764) (BuildId: 221c7c7a2938b90dc1512d7a2d73b7cc)
07-24 15:37:00.103 32746 454 D xring-gpu:cutils_histogram_add: #32 pc 0000000000019fd8 /system/lib64/libutils.so (android::Thread::_threadLoop(void*)+248) (BuildId: 4b1691936eed20bb9d1f28f76e3d264e)
07-24 15:37:00.103 32746 454 D xring-gpu:cutils_histogram_add: #33 pc 000000000001beec /system/lib64/libutils.so (libutil_thread_trampoline(void*) (.__uniq.226528677032898775202282855395389835431)+20) (BuildId: 4b1691936eed20bb9d1f28f76e3d264e)
07-24 15:37:00.103 32746 454 D xring-gpu:cutils_histogram_add: #34 pc 000000000007faf8 /apex/com.android.runtime/lib64/bionic/libc.so (__pthread_start(void*)+232) (BuildId: 321fbc20a04b7667eb38749b2cd93310)
07-24 15:37:00.103 32746 454 D xring-gpu:cutils_histogram_add: #35 pc 0000000000072e44 /apex/com.android.runtime/lib64/bionic/libc.so (__start_thread+64) (BuildId: 321fbc20a04b7667eb38749b2cd93310)
07-24 15:37:00.103 32746 454 E ndroid.systemui: XRING-O1: end in vkAllocateMemory: VkDeviceMemory:0xb4000071bda474d0, size:0x400000, memoryTypeIndex:0x1
07-24 15:37:00.103 32746 454 E ndroid.systemui: CSTEST:in skia, size : 4194304 the allocate pMemory is b4000071bda474d0 - 不通过AllocateVulkanMemory接口申请内存的堆栈：
// external/skia/src/gpu/vk/VulkanUtilsPriv.cpp
skgpu::AllocateAndBindImageMemory
07-24 15:36:58.753 32746 454 D xring-gpu:cutils_histogram_add: #00 pc 0000000000dbcb9c /vendor/lib64/egl/libGLES_mali.so (BuildId: fabe4c713a323cf6)
07-24 15:36:58.753 32746 454 D xring-gpu:cutils_histogram_add: #01 pc 0000000000c81f30 /vendor/lib64/egl/libGLES_mali.so (BuildId: fabe4c713a323cf6)
07-24 15:36:58.753 32746 454 D xring-gpu:cutils_histogram_add: #02 pc 0000000000c814cc /vendor/lib64/egl/libGLES_mali.so (BuildId: fabe4c713a323cf6)
07-24 15:36:58.753 32746 454 D xring-gpu:cutils_histogram_add: #03 pc 0000000000c808f8 /vendor/lib64/egl/libGLES_mali.so (BuildId: fabe4c713a323cf6)
07-24 15:36:58.753 32746 454 D xring-gpu:cutils_histogram_add: #04 pc 0000000000c803dc /vendor/lib64/egl/libGLES_mali.so (BuildId: fabe4c713a323cf6)
07-24 15:36:58.753 32746 454 D xring-gpu:cutils_histogram_add: #05 pc 0000000000dbf25c /vendor/lib64/egl/libGLES_mali.so (BuildId: fabe4c713a323cf6)
07-24 15:36:58.753 32746 454 D xring-gpu:cutils_histogram_add: #06 pc 0000000000dbec80 /vendor/lib64/egl/libGLES_mali.so (BuildId: fabe4c713a323cf6)
07-24 15:36:58.753 32746 454 D xring-gpu:cutils_histogram_add: #07 pc 0000000000dba938 /vendor/lib64/egl/libGLES_mali.so (BuildId: fabe4c713a323cf6)
07-24 15:36:58.753 32746 454 D xring-gpu:cutils_histogram_add: #08 pc 0000000000db9140 /vendor/lib64/egl/libGLES_mali.so (BuildId: fabe4c713a323cf6)
07-24 15:36:58.753 32746 454 D xring-gpu:cutils_histogram_add: #09 pc 000000000002fac8 /system/lib64/libvulkan.so (vulkan::driver::BindImageMemory2(VkDevice_T*, unsigned int, VkBindImageMemoryInfo const*)+120) (BuildId: 83a9ba50ee2c60126239a73368507305)
07-24 15:36:58.753 32746 454 D xring-gpu:cutils_histogram_add: #10 pc 0000000000a759d4 /system/lib64/libhwui.so (skgpu::AllocateAndBindImageMemory(skgpu::VulkanAlloc*, VkImage_T*, VkPhysicalDeviceMemoryProperties2 const&, VkAndroidHardwareBufferPropertiesANDROID const&, AHardwareBuffer*, skgpu::VulkanInterface const*, VkDevice_T*)+272) (BuildId: 221c7c7a2938b90dc1512d7a2d73b7cc)
07-24 15:36:58.753 32746 454 D xring-gpu:cutils_histogram_add: #11 pc 0000000000557c50 /system/lib64/libhwui.so (GrAHardwareBufferUtils::MakeVulkanBackendTexture(GrDirectContext*, AHardwareBuffer*, int, int, void (**)(void*), void (**)(void*, GrDirectContext*), void**, bool, GrBackendFormat const&, bool, bool)+784) (BuildId: 221c7c7a2938b90dc1512d7a2d73b7cc)
07-24 15:36:58.753 32746 454 D xring-gpu:cutils_histogram_add: #12 pc 00000000005573b0 /system/lib64/libhwui.so (SkSurfaces::WrapAndroidHardwareBuffer(GrDirectContext*, AHardwareBuffer*, GrSurfaceOrigin, sk_sp<SkColorSpace>, SkSurfaceProps const*, bool)+308) (BuildId: 221c7c7a2938b90dc1512d7a2d73b7cc)
07-24 15:36:58.753 32746 454 D xring-gpu:cutils_histogram_add: #13 pc 0000000000495004 /system/lib64/libhwui.so (android::uirenderer::renderthread::VulkanManager::dequeueNextBuffer(android::uirenderer::renderthread::VulkanSurface*)+1984) (BuildId: 221c7c7a2938b90dc1512d7a2d73b7cc)
07-24 15:36:58.753 32746 454 D xring-gpu:cutils_histogram_add: #14 pc 000000000048f620 /system/lib64/libhwui.so (android::uirenderer::renderthread::CanvasContext::draw(bool)+484) (BuildId: 221c7c7a2938b90dc1512d7a2d73b7cc)
07-24 15:36:58.753 32746 454 D xring-gpu:cutils_histogram_add: #15 pc 000000000048d7fc /system/lib64/libhwui.so (android::uirenderer::renderthread::DrawFrameTask::run()+3232) (BuildId: 221c7c7a2938b90dc1512d7a2d73b7cc)
07-24 15:36:58.753 32746 454 D xring-gpu:cutils_histogram_add: #16 pc 000000000060358c /system/lib64/libhwui.so (android::uirenderer::renderthread::RenderThread::threadLoop()+764) (BuildId: 221c7c7a2938b90dc1512d7a2d73b7cc)
07-24 15:36:58.753 32746 454 D xring-gpu:cutils_histogram_add: #17 pc 0000000000019fd8 /system/lib64/libutils.so (android::Thread::_threadLoop(void*)+248) (BuildId: 4b1691936eed20bb9d1f28f76e3d264e)
07-24 15:36:58.753 32746 454 D xring-gpu:cutils_histogram_add: #18 pc 000000000001beec /system/lib64/libutils.so (libutil_thread_trampoline(void*) (.__uniq.226528677032898775202282855395389835431)+20) (BuildId: 4b1691936eed20bb9d1f28f76e3d264e)
07-24 15:36:58.753 32746 454 D xring-gpu:cutils_histogram_add: #19 pc 000000000007faf8 /apex/com.android.runtime/lib64/bionic/libc.so (__pthread_start(void*)+232) (BuildId: 321fbc20a04b7667eb38749b2cd93310)
07-24 15:36:58.753 32746 454 D xring-gpu:cutils_histogram_add: #20 pc 0000000000072e44 /apex/com.android.runtime/lib64/bionic/libc.so (__start_thread+64) (BuildId: 321fbc20a04b7667eb38749b2cd93310)- 还有很多未记录的申请vulkan内存的方式，需要通过gpu侧加堆栈打印出，可以和xring的gpu团队联系打个mail.so库进一步排查
createTexture时创建尺寸估算内存大小会和vkallocate的大小有偏差，怀疑是没有设置alpha通道，比如270x600x4=64800 ⇒ 0.6M，但是vkallocate确有4194304 ⇒ 4.19M，差距很大

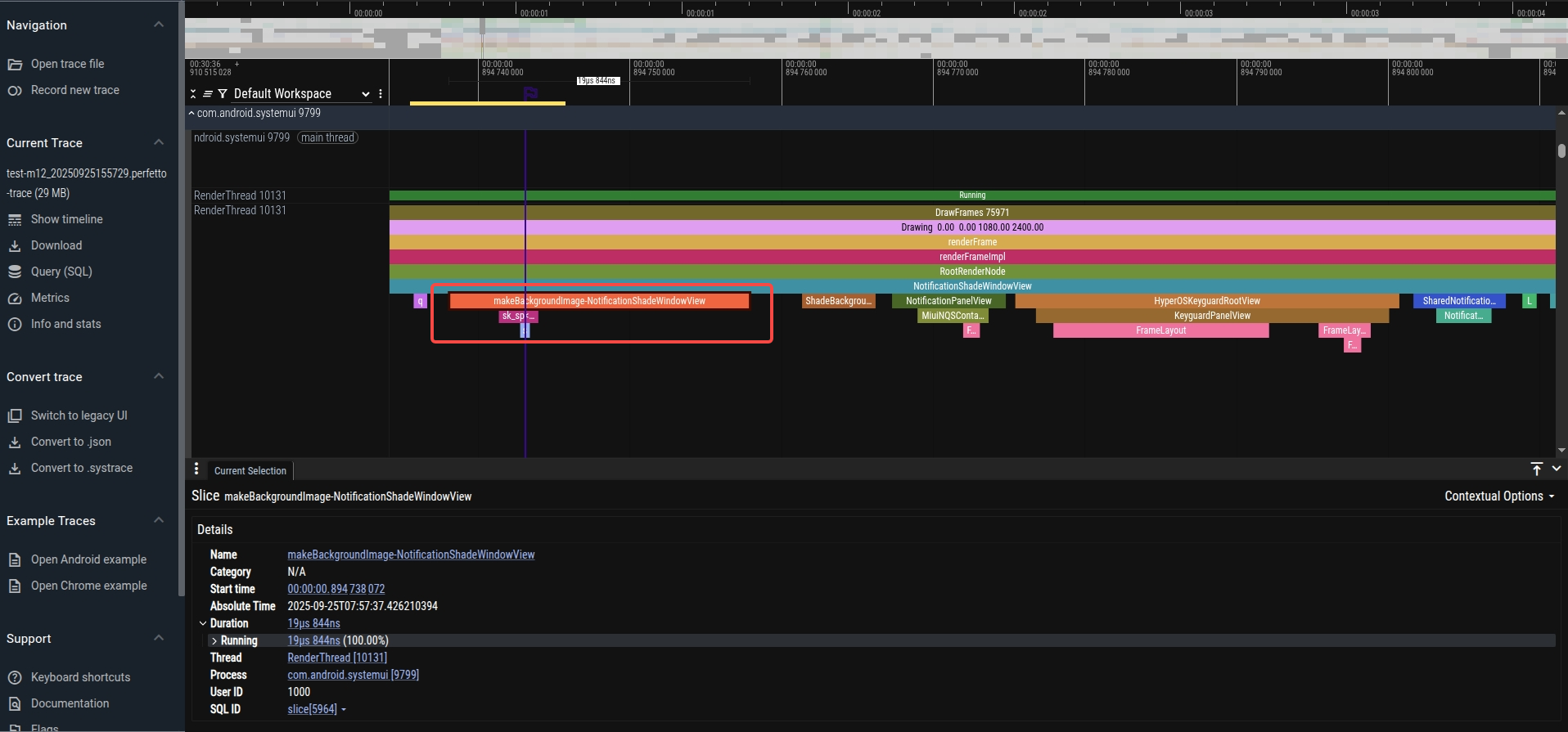

非RenderLayer申请buffer的原因
场景在首次下拉通知栏
09-26 10:25:18.034 14948 15374 E ndroid.systemui: WWWLLLTTT - GrVkGpu::onCreateTexture 1216 x 576
09-26 10:25:18.061 14948 15374 D WWWLLLTTT-onCreateTexture: #00 pc 00000000007791fc /system/lib64/libhwui.so (GrVkGpu::onCreateTexture(SkISize, GrBackendFormat const&, skgpu::Renderable, int, skgpu::Budgeted, skgpu::Protected, int, unsigned int, std::__1::basic_string_view<char, std::__1::char_traits<char>>)+364) (BuildId: 1738d86492d8a5d2368a374d4cad3fdd)
09-26 10:25:18.061 14948 15374 D WWWLLLTTT-onCreateTexture: #01 pc 00000000005849c4 /system/lib64/libhwui.so (GrGpu::createTextureCommon(SkISize, GrBackendFormat const&, GrTextureType, skgpu::Renderable, int, skgpu::Budgeted, skgpu::Protected, int, unsigned int, std::__1::basic_string_view<char, std::__1::char_traits<char>>)+244) (BuildId: 1738d86492d8a5d2368a374d4cad3fdd)
09-26 10:25:18.061 14948 15374 D WWWLLLTTT-onCreateTexture: #02 pc 0000000000487b10 /system/lib64/libhwui.so (GrResourceProvider::createTexture(SkISize, GrBackendFormat const&, GrTextureType, skgpu::Renderable, int, skgpu::Mipmapped, skgpu::Budgeted, skgpu::Protected, std::__1::basic_string_view<char, std::__1::char_traits<char>>)+480) (BuildId: 1738d86492d8a5d2368a374d4cad3fdd)
09-26 10:25:18.061 14948 15374 D WWWLLLTTT-onCreateTexture: #03 pc 0000000000487604 /system/lib64/libhwui.so (GrSurfaceProxy::createSurfaceImpl(GrResourceProvider*, int, skgpu::Renderable, skgpu::Mipmapped) const+132) (BuildId: 1738d86492d8a5d2368a374d4cad3fdd)
09-26 10:25:18.061 14948 15374 D WWWLLLTTT-onCreateTexture: #04 pc 000000000048750c /system/lib64/libhwui.so (GrTextureRenderTargetProxy::createSurface(GrResourceProvider*) const+92) (BuildId: 1738d86492d8a5d2368a374d4cad3fdd)
09-26 10:25:18.061 14948 15374 D WWWLLLTTT-onCreateTexture: #05 pc 00000000009fa8b8 /system/lib64/libhwui.so (GrResourceAllocator::Register::instantiateSurface(GrSurfaceProxy*, GrResourceProvider*)+344) (BuildId: 1738d86492d8a5d2368a374d4cad3fdd)
09-26 10:25:18.061 14948 15374 D WWWLLLTTT-onCreateTexture: #06 pc 00000000004a0a90 /system/lib64/libhwui.so (GrResourceAllocator::assign()+368) (BuildId: 1738d86492d8a5d2368a374d4cad3fdd)
09-26 10:25:18.061 14948 15374 D WWWLLLTTT-onCreateTexture: #07 pc 00000000004021b0 /system/lib64/libhwui.so (GrDrawingManager::flush(SkSpan<GrSurfaceProxy*>, SkSurfaces::BackendSurfaceAccess, GrFlushInfo const&, skgpu::MutableTextureState const*)+6704) (BuildId: 1738d86492d8a5d2368a374d4cad3fdd)
09-26 10:25:18.061 14948 15374 D WWWLLLTTT-onCreateTexture: #08 pc 0000000000532618 /system/lib64/libhwui.so (GrDirectContextPriv::flushSurfaces(SkSpan<GrSurfaceProxy*>, SkSurfaces::BackendSurfaceAccess, GrFlushInfo const&, skgpu::MutableTextureState const*)+200) (BuildId: 1738d86492d8a5d2368a374d4cad3fdd)
09-26 10:25:18.061 14948 15374 D WWWLLLTTT-onCreateTexture: #09 pc 00000000009ebf6c /system/lib64/libhwui.so (GrDirectContext::flush(SkSurface*, SkSurfaces::BackendSurfaceAccess, GrFlushInfo const&)+140) (BuildId: 1738d86492d8a5d2368a374d4cad3fdd)
09-26 10:25:18.061 14948 15374 D WWWLLLTTT-onCreateTexture: #10 pc 00000000008d055c /system/lib64/libhwui.so (android::uirenderer::renderthread::VulkanManager::finishFrame(SkSurface*)+508) (BuildId: 1738d86492d8a5d2368a374d4cad3fdd)
09-26 10:25:18.061 14948 15374 D WWWLLLTTT-onCreateTexture: #11 pc 00000000008c6380 /system/lib64/libhwui.so (android::uirenderer::skiapipeline::SkiaVulkanPipeline::draw(android::uirenderer::renderthread::Frame const&, SkRect const&, SkRect const&, android::uirenderer::LightGeometry const&, android::uirenderer::LayerUpdateQueue*, android::uirenderer::Rect const&, bool, android::uirenderer::LightInfo const&, std::__1::vector<android::sp<android::uirenderer::RenderNode>, std::__1::allocator<android::sp<android::uirenderer::RenderNode>>> const&, android::uirenderer::FrameInfoVisualizer*, android::uirenderer::renderthread::HardwareBufferRenderParams const&, std::__1::mutex&, android::Region const&)+528) (BuildId: 1738d86492d8a5d2368a374d4cad3fdd)
09-26 10:25:18.061 14948 15374 D WWWLLLTTT-onCreateTexture: #12 pc 000000000053416c /system/lib64/libhwui.so (android::uirenderer::renderthread::CanvasContext::draw(bool)+2044) (BuildId: 1738d86492d8a5d2368a374d4cad3fdd)
09-26 10:25:18.061 14948 15374 D WWWLLLTTT-onCreateTexture: #13 pc 00000000008985d4 /system/lib64/libhwui.so (std::__1::__function::__func<android::uirenderer::renderthread::DrawFrameTask::postAndWait()::$_0, std::__1::allocator<android::uirenderer::renderthread::DrawFrameTask::postAndWait()::$_0>, void ()>::operator()() (.__uniq.264041412789356548918088680803242235290.3c9219c4c61f046e2a02e26efbc92a9c)+2996) (BuildId: 1738d86492d8a5d2368a374d4cad3fdd)
09-26 10:25:18.061 14948 15374 D WWWLLLTTT-onCreateTexture: #14 pc 0000000000604ce4 /system/lib64/libhwui.so (android::uirenderer::renderthread::RenderThread::threadLoop()+772) (BuildId: 1738d86492d8a5d2368a374d4cad3fdd)
09-26 10:25:18.061 14948 15374 D WWWLLLTTT-onCreateTexture: #15 pc 0000000000037ec8 /system/lib64/libutils.so (android::Thread::_threadLoop(void*)+456) (BuildId: 4d39e49050a383c02d800bbe8f9c715a)
09-26 10:25:18.061 14948 15374 D WWWLLLTTT-onCreateTexture: #16 pc 000000000003bcd4 /system/lib64/libutils.so (libutil_thread_trampoline(void*) (.__uniq.226528677032898775202282855395389835431)+20) (BuildId: 4d39e49050a383c02d800bbe8f9c715a)
09-26 10:25:18.061 14948 15374 D WWWLLLTTT-onCreateTexture: #17 pc 000000000008426c /apex/com.android.runtime/lib64/bionic/libc.so (__pthread_start(void*)+236) (BuildId: c0085b1625d4c77521e9a135f55cde77)
09-26 10:25:18.061 14948 15374 D WWWLLLTTT-onCreateTexture: #18 pc 00000000000767a0 /apex/com.android.runtime/lib64/bionic/libc.so (__start_thread+64) (BuildId: c0085b1625d4c77521e9a135f55cde77)- 高级材质makeBackgroundImage时会申请离屏内存
//vendor/xiaomi/frameworks/base/libs/hwui/pipeline/skia/MiBackgroundBlurBlendImpl.cpp
void MiBackgroundBlurBlendImpl::makeBackgroundImage(GrRecordingContext* rContext, MiBackgroundBlurBlend* backgroundBlurBlend, SkCanvas* canvas) {
ATRACE_FORMAT("makeBackgroundImage-%s", backgroundBlurBlend->getName());
SkSamplingOptions linearSampling(SkFilterMode::kLinear, SkMipmapMode::kNone);
bool useRGBA8 = backgroundBlurBlend->mBackgroundBlurType == GRADIENT_BLUR_TYPE;
// sk_sp<SkSurface> surface = backgroundBlurBlend->getSurface(backgroundBlurBlend->mBlurScale, backgroundBlurBlend->mBounds, false, useRGBA8);
sk_sp<SkSurface> surface = MiBlurBlendUtils::instance().getSurface(
rContext, backgroundBlurBlend->mBlurScale, backgroundBlurBlend->mBounds, false,
useRGBA8 ? SkColorType::kRGBA_8888_SkColorType : SkColorType::kRGBA_1010102_SkColorType);GFX日志增强
任航https://gerrit.pt.mioffice.cn/q/topic:%22gfxinfo+dump%22

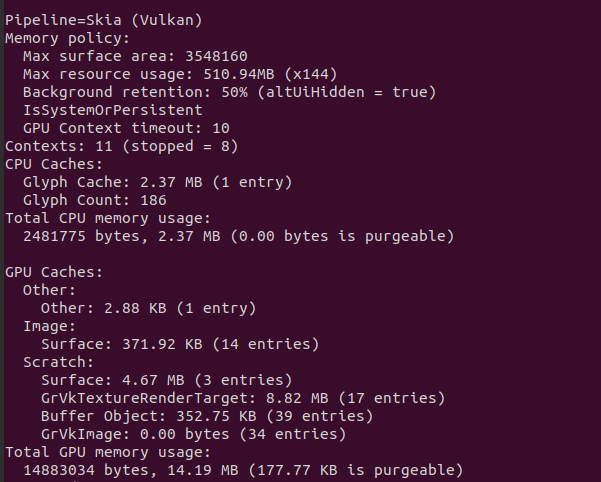

gfxinfo可以用于分析和优化应用程序的图形渲染性能

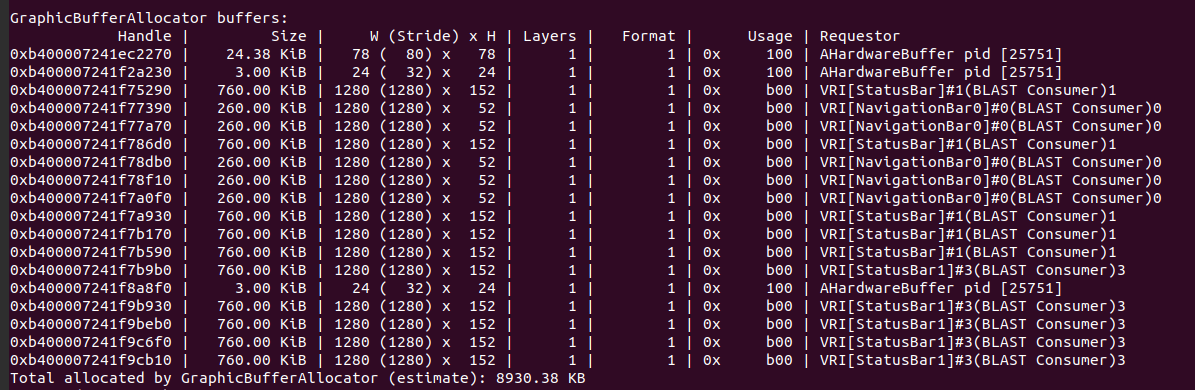

我们可以粗略看到GPU mem信息以及buffer尺寸和内存大小
对于具体分析问题这些信息可能不够，采用如下的日志增强方案可以看到详细的GrVkImage、GrVkTextureRenderTarget、Buffer Object的尺寸以及大小信息。

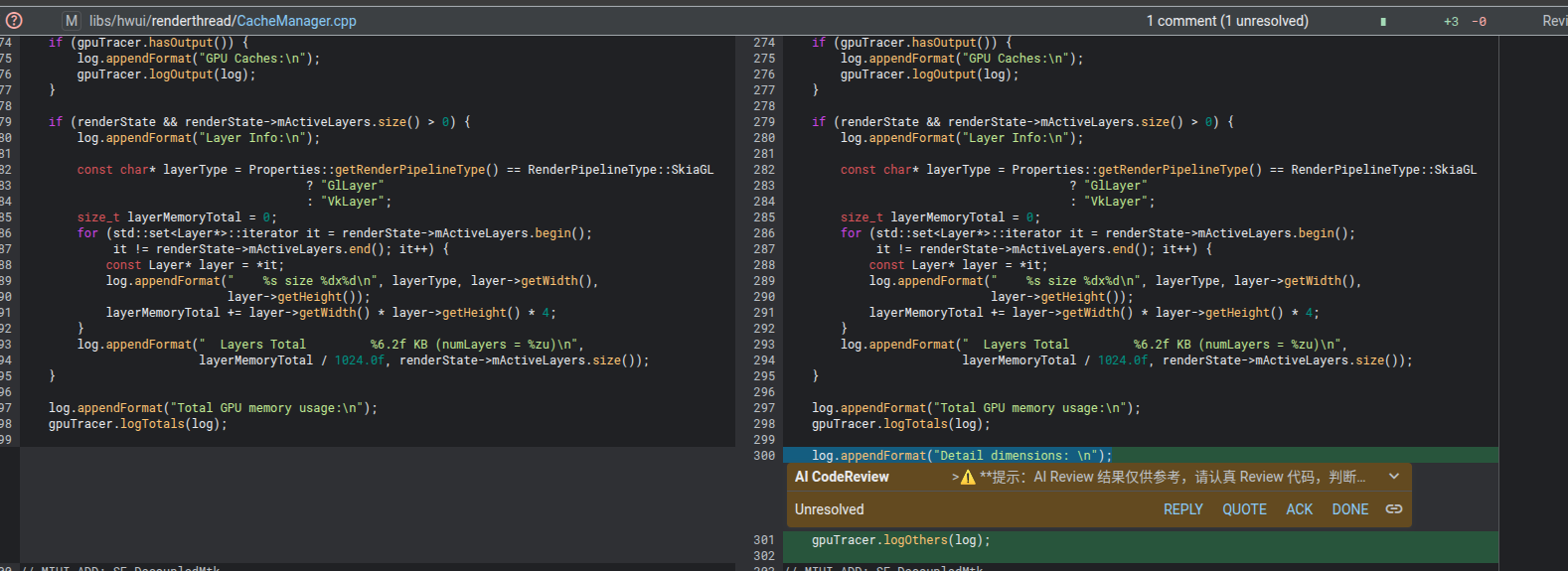

- gfxinfo的dump信息在CacheManager::dumpMemoryUsage方法输出
frameworks/base/libs/hwui/renderthread/CacheManager.cpp
- SkiaMemoryTracer是SkTraceMemoryDump子类
libs/hwui/pipeline/skia/SkiaMemoryTracer.h
在GrGpuResource::dumpMemoryStatisticsPriv中调用SkiaMemoryTracer定义的dumpLogcat方法把buffer的type，size输出到dump信息中；
- 这些type和size都是GrGpuResource子类调用自身dump信息得到。
external/skia/src/gpu/ganesh/GrGpuResource.cpp
void GrGpuResource::dumpMemoryStatistics(SkTraceMemoryDump* traceMemoryDump) const {
if (this->fRefsWrappedObjects && !traceMemoryDump->shouldDumpWrappedObjects()) {
return;
}
this->dumpMemoryStatisticsPriv(traceMemoryDump, this->getResourceName(),
this->getResourceType(), this->gpuMemorySize());
}
void GrGpuResource::dumpMemoryStatisticsPriv(SkTraceMemoryDump* traceMemoryDump,
const SkString& resourceName,
const char* type, size_t size) const {
const char* tag = "Scratch";
if (fUniqueKey.isValid()) {
tag = (fUniqueKey.tag() != nullptr) ? fUniqueKey.tag() : "Other";
}
traceMemoryDump->dumpNumericValue(resourceName.c_str(), "size", "bytes", size);
traceMemoryDump->dumpStringValue(resourceName.c_str(), "type", type);
traceMemoryDump->dumpStringValue(resourceName.c_str(), "label", this->getLabel().c_str());
traceMemoryDump->dumpStringValue(resourceName.c_str(), "category", tag);
if (this->isPurgeable()) {
traceMemoryDump->dumpNumericValue(resourceName.c_str(), "purgeable_size", "bytes", size);
}
if (traceMemoryDump->shouldDumpWrappedObjects()) {
traceMemoryDump->dumpWrappedState(resourceName.c_str(), fRefsWrappedObjects);
}
this->setMemoryBacking(traceMemoryDump, resourceName);
}- 常见子类包括GrVkTextureRenderTarget和GrVkImage等，可以根据需求重写getResourceType方法
GrVkImage：用于存储多维数据，如纹理、帧缓冲等；GrVkTextureRenderTarget：提供了一个可以同时用作纹理和渲染目标的资源；Buffer Object：用于存储线性数据，如顶点数据、索引数据、uniform 数据等；

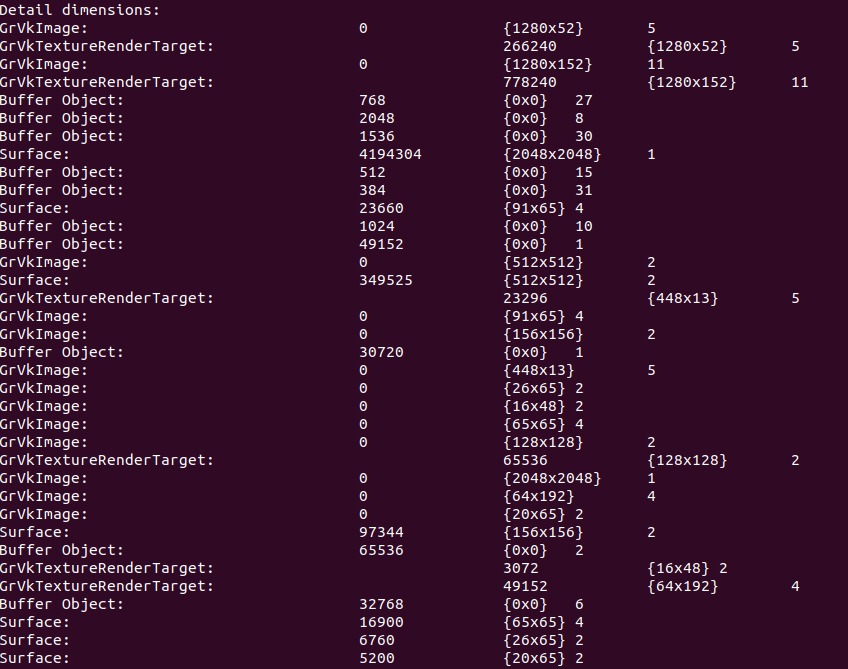

这样我们可以在gfxinfo中看到通过vkAllocateMemory申请的详细内存以及对应的尺寸信息，协助分析。
原生支持
VMA中提供统计allocationbytes的能力
//external/skia/src/gpu/vk/vulkanmemoryallocator/VulkanAMDMemoryAllocator.cpp
std::pair<uint64_t, uint64_t> VulkanAMDMemoryAllocator::totalAllocatedAndUsedMemory() const {
VmaTotalStatistics stats;
vmaCalculateStatistics(fAllocator, &stats);
return {stats.total.statistics.blockBytes, stats.total.statistics.allocationBytes};
}
